DC 1 to 8 Power Splitter Cord, Y Adapter

$2.02

This 8-Way power splitter cord allows eight devices to operate from one power source. The 5.5mm*2.1mm barrel connector is the most common type of connector, used for LED lighting, CCTV security cameras, and many electronic devices. We also support customized with small MOQs at competitive prices, and all products are RoHS compliant.

Description

What is a DC 1 to 8 power splitter cord

What is a DC 1 to 8 power splitter cord?

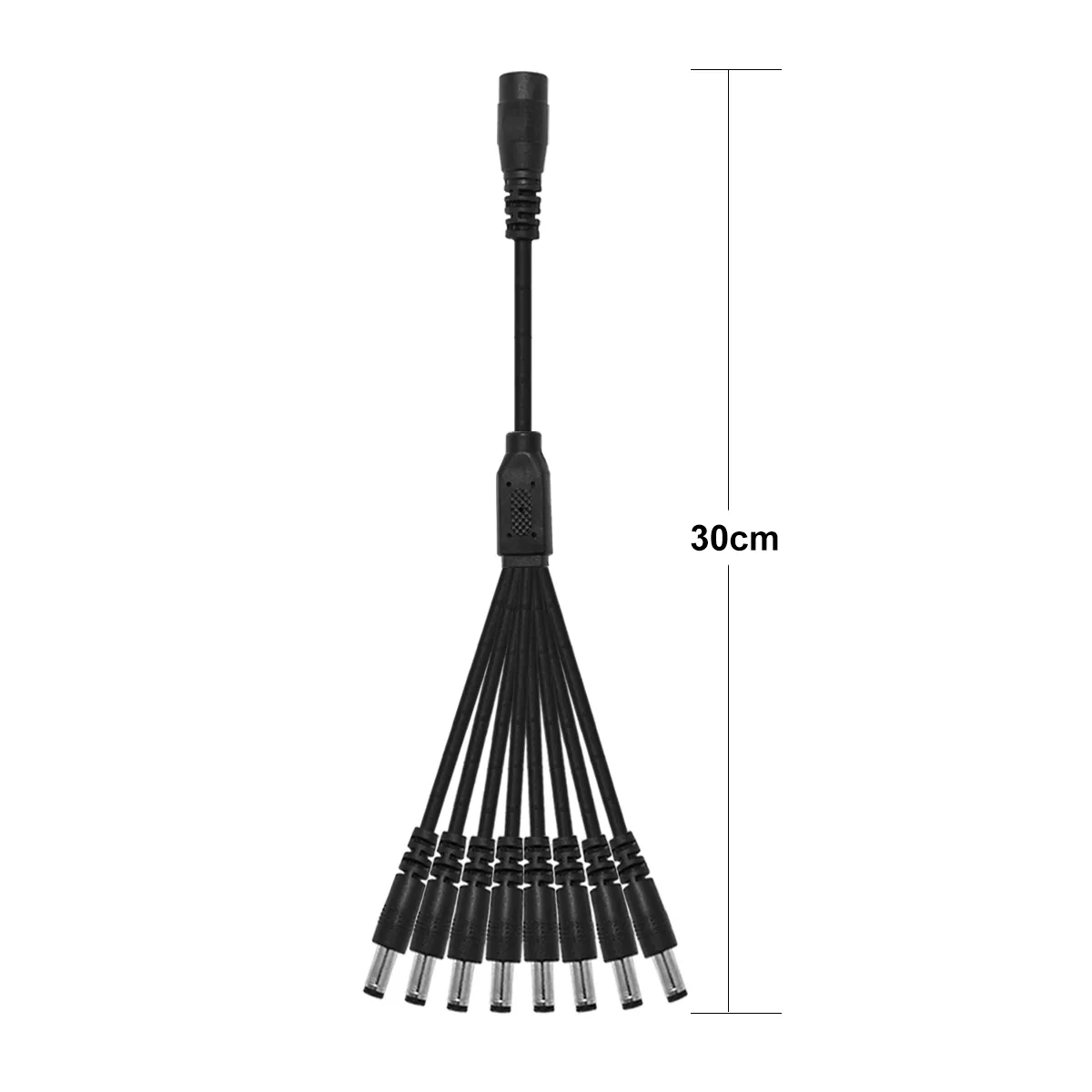

This 30cm long DC 1 to 8 power splitter cord allows you to power up to 8 x LED flameless LED candles or electronic devices from a single AC to DC wall power adapter.

The power splitter cord has a single 5.5mm*2.1mm barrel plug at one end of the cord and 8 pieces of 5.5mm 2.1mm barrel sockets at the other end of the power cord.

This 1 female to 8 male power splitter cord works well with the barrel connectors on all of our battery eliminator kits and accessories, such as our DC power extension cords, AC to DC wall power adapters, and active dummy cell batteries.

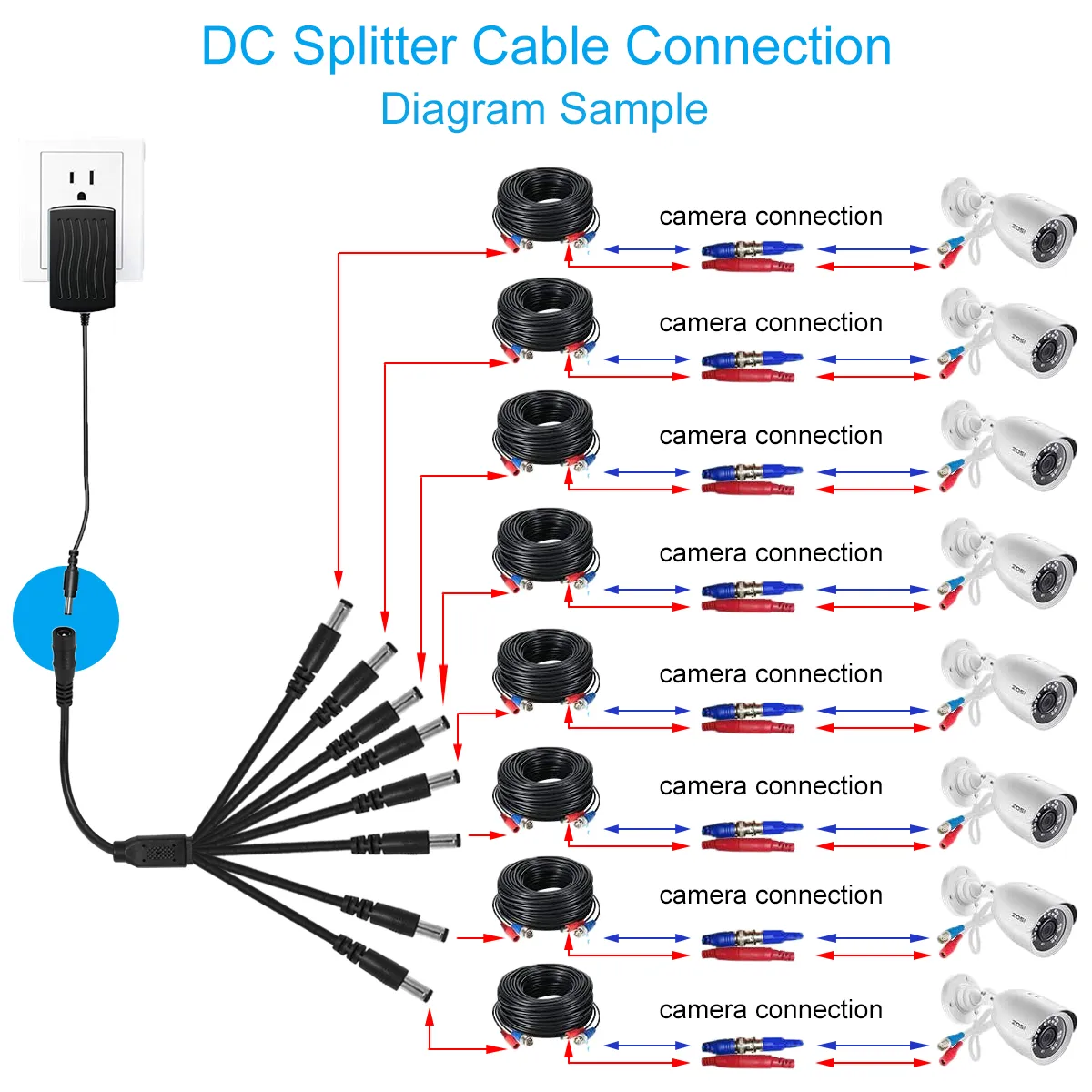

DC 1 to 8 power splitter cord applications

Specifications of DC 1 to 8 power splitter cord

Conductor Quantity: 2
Wire Color: black
Male Wire Conductor Size: 20AWG / 0.5mm2
Construction (No./mm): 21/0.15
Outside Diameter: 4.0mm
Inside Diameter: 1.5mm
Female Wire Conductor Size: 22AWG / 0.3mm2
Construction (No./mm): 17/0.14
Outside Diameter: 3.5mm
Inside Diameter: 1.3mm
Conductor Material: stranded copper
Insulation Material: Polypropylene
Jacket Material: PVC
Available Wire Lengths: 30cm
Operating Voltage: 300V max.
Temp. Rating: -20 ~ 60°C
Compliance: RoHS

Package includes:

1 x DC 1 to 8 power splitter cord

Note: The wire gauge, cable length, and color can be custom. Please freely contact us and ask for the price and minimum order quantity!
