20 Gauge Insulated Copper Wire with Red/Black Color

This wire made with PVC jacket and copper is applicated to electronics, toy car batteries, lighting, etc. We also support customized with small MOQs at competitive prices, and all products are RoHS compliant.

SKU electrical-wire-wholesale-20-gauge-copper-wire-lsccw0643 Categories , ,

DelightFire offers types of 20 gauge copper wire products. About 35% of these are Electrical Wires, and 65% are Power Cables. Red/black 22 gauge insulated wire made with high quality PVC jacket is applicated to wire harnesses, toy car batteries, and strip lights.

20 gauge copper wire

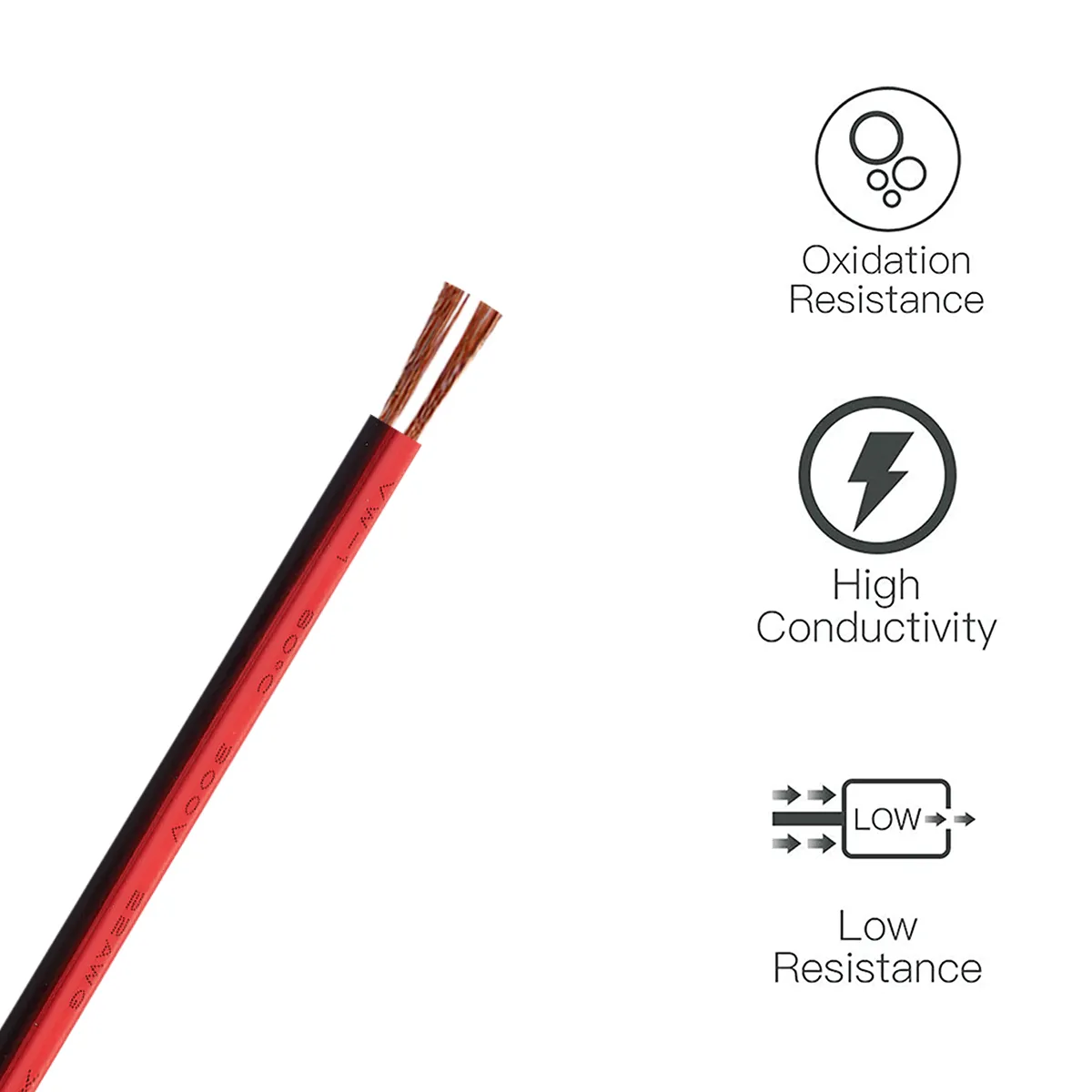

Benefits of 20 Gauge Copper Wire?

20 Gauge Copper wire is typically used to supply power in low-voltage, low-current applications such as wire harnesses, SM JST connectors, electronics, toy car batteries, solar panels, battery holder lead wires, strip lights, etc. They are ideal for a situation where conductors need to be routed quickly. This 20 AWG wire is useful for quick installations and easy runs.

What are PVC jacket colors available? In two conductor electrical wires, the available colors are red and black. But the wire gauge, length, and colors can be customized with small MOQs.

Benefits of 20 Gauge 2 Conductor Stranded Wire

Specifications of 20 Gauge Insulated Copper Wire

Conductor Quantity: 2
Wire Color: red, black
Conductor Size: 20AWG
Construction (No./mm): 21/0.14
Conductor Material: stranded tinned copper
Insulation Material: PVC
Available Wire Lengths: 100m/roll
Outside Diameter: 1.85mm
Operating Voltage: 300V max.
Temp. Rating: -20 ~ 60°C
Compliance: RoHS

Package Includes:

1 x 100m/roll20 gauge copper wire


  • Note: The cable length, color, and type can be customized; please freely contact us and ask for the price and minimum order quantity!

20 Gauge Copper Wire Diameter

Specifications of 20 Gauge Insulated Copper Wire

Applications of Red/Black 20 Gauge Solid Copper Wire:

Suitable for LED lighting, SM JST connector, electronic, toy car battery, solar panel, battery holder lead wire and strip lights, etc.

What is 20 Gauge Wire Used for

As a professional electrical wires wholesale supplier from China, DelightFire can customize all types of electrical wire, such as 22 gauge insulated copper wire, 20 gauge insulated copper wire, and 18 gauge insulated copper wire. You can get the best electrical wire price from the manufacturer directly without any electrical wire distributor. Don’t hesitate anymore; tell us your needs to custom an affordable electrical wire from DelightFire.


Weight 1.65 kg
Dimensions 1 × 1 × 1 cm
