Black 18 gauge wire made with a high-quality PVC jacket and tinned copper wire is applicated to SM JST connector, electronic toy car batteries, and strip lights, which can be custom with small MOQs. Let us start making the best offer for the 18 gauge tinned copper wire.
Benefits of 18 gauge wire?
18 Gauge electrical wire is typically used to supply power in low-voltage, low-current applications such as LED lighting, SM JST connector, electronic toy car battery, solar panel, battery holder lead wire and strip lights, etc. They are ideal for a situation where conductors need to be routed quickly. This 18 AWG electrical wire is useful for quick installations and easy runs.
Specifications of 18 Gauge Stranded Wire
| Conductor Quantity: | 2 |
| Wire Color: | black |
| Conductor Size: | 18AWG |
| Construction (No./mm): | 34/0.14 |
| Conductor Material: | stranded tinned copper |
| Insulation Material: | PVC |
| Available Wire Lengths: | 100m/roll |
| Outside Diameter: | 2.1mm |
| Operating Voltage: | 300V max. |
| Temp. Rating: | -20 ~ 60°C |
| Compliance: | RoHS |
Package Includes:
1 x 100m/roll 18 gauge electrical wire
Note:
-
Note: The cable length, color, and type can be customized; please freely contact us and ask for the price and minimum order quantity!

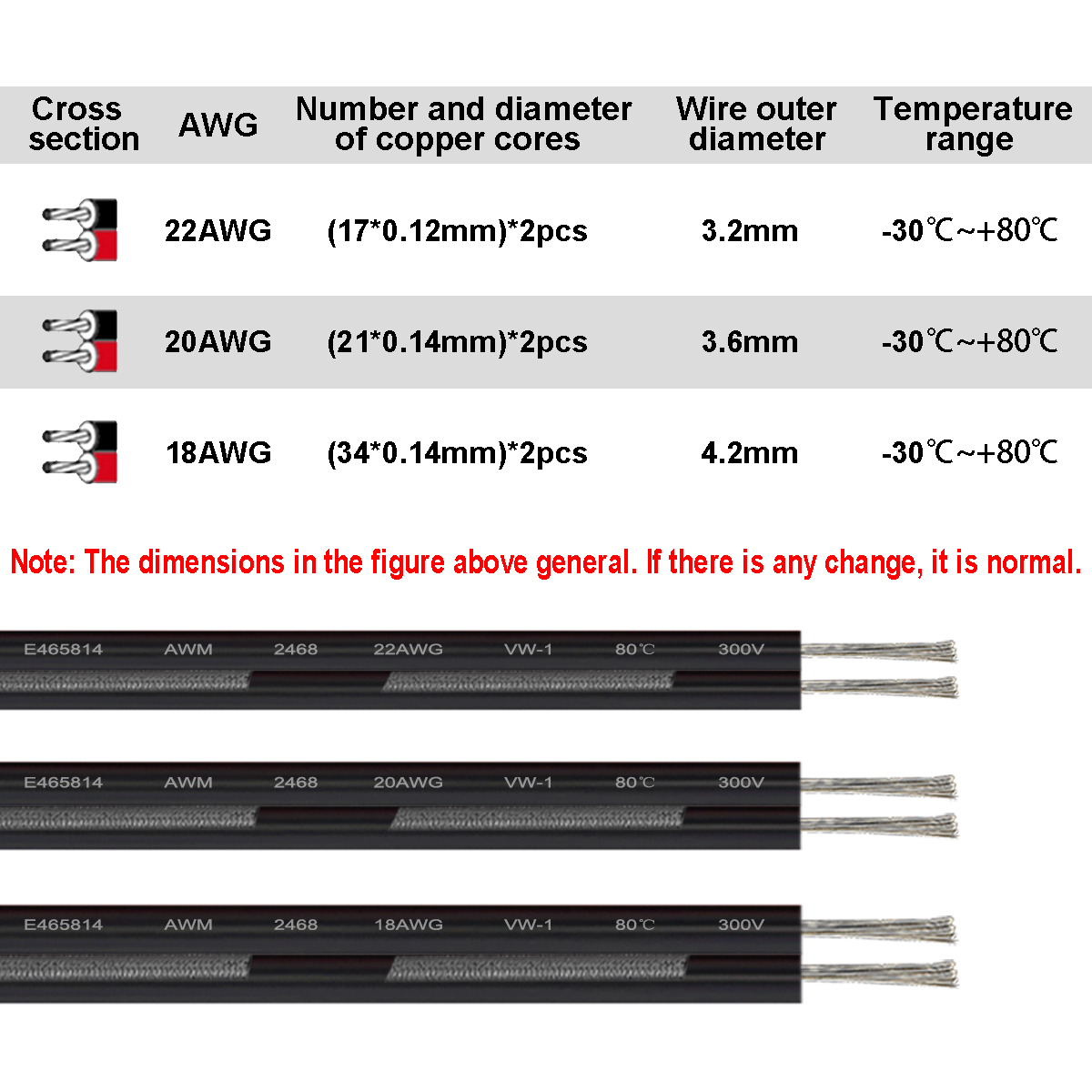

What are 22-18 gauge wire dimensions?
CONDUCTOR
(mm)
INSULATION
(mm)
MAX.COND.
RESISTANCE (Ω/km,20°C,DC)
AWG
CONSTRUCTION
(No./mm)
DIA.
(mm)
THICKNESS
(mm)
O.D.
(mm)
(Ω/km)
22
17/0.16
0.76
0.38
1.6
57.52
20
26/0.16
0.94
0.38
1.8
37.61
18
41/0.16
1.18
0.38
2.1
23.85
| CONDUCTOR (mm) | INSULATION (mm) | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | |||
| AWG | CONSTRUCTION (No./mm) | DIA. (mm) | THICKNESS (mm) | O.D. (mm) | (Ω/km) |
| 22 | 17/0.16 | 0.76 | 0.38 | 1.6 | 57.52 |
| 20 | 26/0.16 | 0.94 | 0.38 | 1.8 | 37.61 |
| 18 | 41/0.16 | 1.18 | 0.38 | 2.1 | 23.85 |

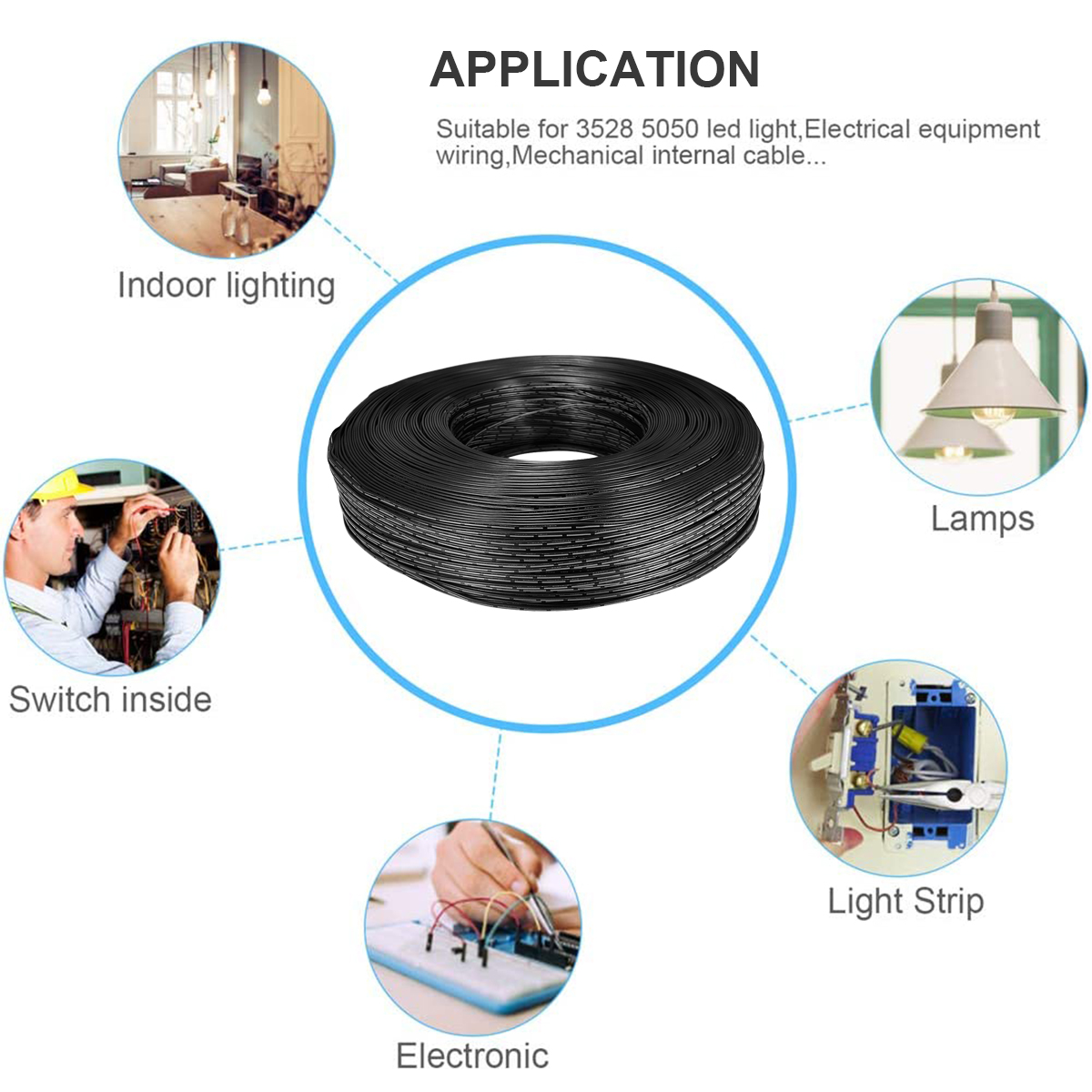

Applications of Black 18 Gauge Solid Tinned Copper Wire
Suitable for LED lighting, SM JST connector, electronic, toy car battery, solar panel, battery holder lead wire and strip lights, etc.
As a professional Electrical Wire Supplier and manufacturer from China, DelightFire can customize all types of PVC wire, such as 22 gauge electrical wire, 20 gauge electrical wire, and 18 gauge insulated electrical wire. You can get the best 20 AWG Electrical Wire price from the manufacturer directly without any wire distributor. Don’t hesitate anymore; tell us your needs to custom an affordable 18 gauge wire from DelightFire.
