5.5mm 2.1mm 12V DC Power Cord 20 Gauge Wire

This 12v DC power cord total 5m length, ideal for CCTV Security Cameras, Routers, or any application that requires connectivity with power. We also support customized with small MOQs at competitive prices, and all products are RoHS compliant

SKU DC Power Extension Cable-DC12V-5m-20AWG-dcc0092 Categories ,

What is a 12V DC power cord?

20 gauge 5.5mm*2.1mm 12v dc power cord has a finished male dc fitting on one end, and on the other side is a 5.5mm 2.1mm female power connector. It is suitable for all DC voltages 0-24V. It allows the flexible option for setting up electronic devices such as CCTV cameras, wiring solar panels, solar fountain pumps, sensors, and anything that requires DC input. It also accepts a 5.5mm 2.1mm plug, where the wall outlet may be out of reach. Please note this dc power cable only accepts a 5.5mm 2.1mm barrel plug from the power adapter and will not work with other sizes, such as 5.5mm*2.5mm, 4.0mm*1.7mm, 3.5*1.35mm, etc.

What is 12V DC power cord

What are the benefits of a 12v DC power extension cord?

There is mainly DC power extension cord in the market: DC data extension cords, DC wiper extension cords, DC charging power extension cords, waterproof DC power extension cords, etc.

These DC power extension cords are ideal for transferring data and connecting devices with power.

12v DC power extension cord available color

What colors are available? The available colors are black and white in the 20 gauge wire 5m length dc power extension cord. The wire gauge, cable length, and colors can be custom with small MOQs. About how to complete a dc power cord project, please read this article DC power cord Custom Service.

white round cable 22 gauge wire inner red black color

Specifications of 20 gauge wire DC power extension cord

Conductor Quantity: 2
Wire Color: white
Conductor Size: 20AWG / 0.5mm2
Construction (No./mm): 21/0.15
Conductor Material: stranded copper
Insulation Material: Polypropylene
Jacket Material: PVC
Available Wire Lengths: 5m
Outside Diameter: 4.0mm
Inside Diameter: 1.5mm
Operating Voltage: 300V max.
Temp. Rating: -20 ~ 60°C
Compliance: RoHS

Package Includes:

1 x 20 gauge wire 5.5mm*2.1mm DC power cord

Note: The wire gauge, cable length, and color can be custom. Please freely contact us and ask for the price and minimum order quantity!

white dc power cable eco-friendly PVC material

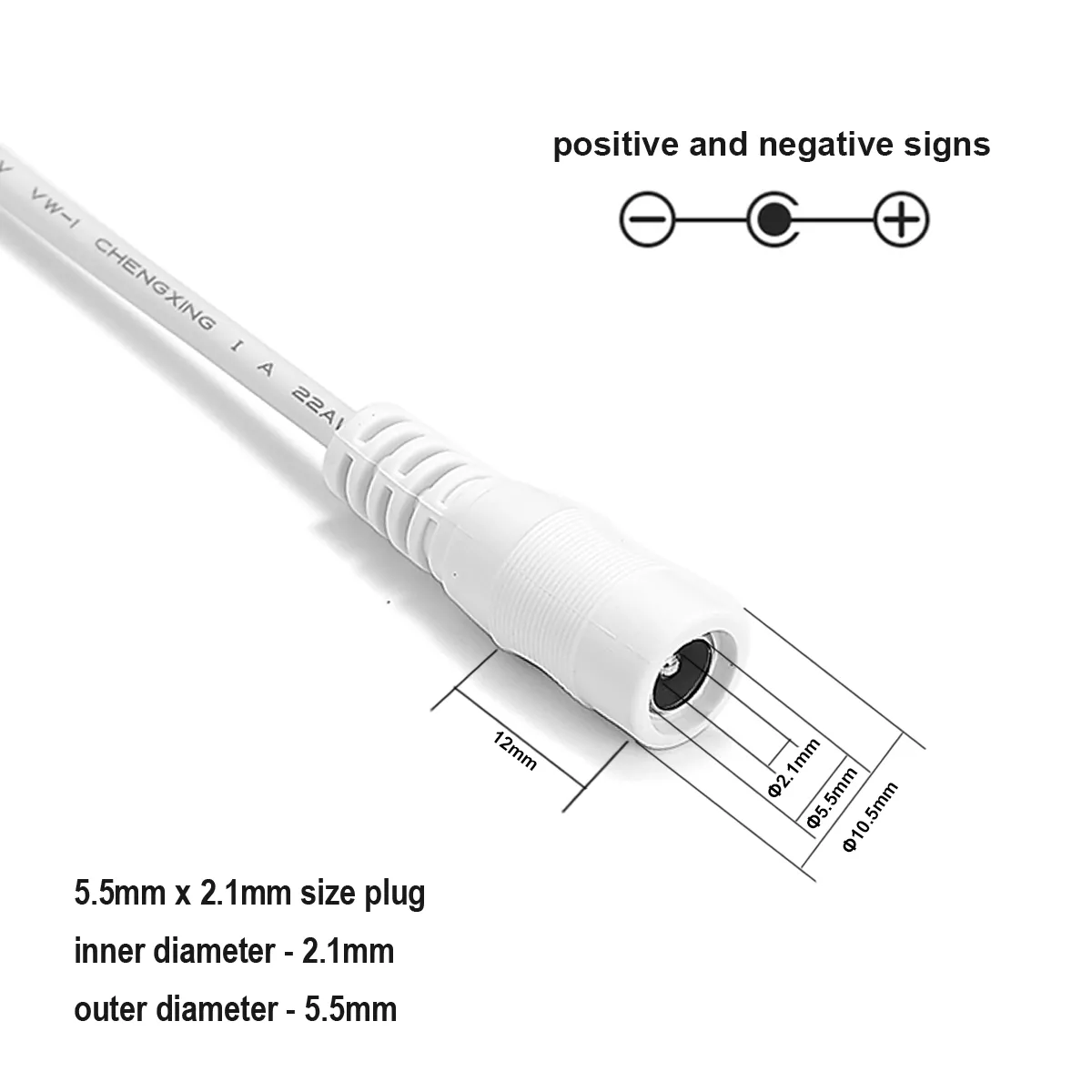

What is 5.5mm*2.1mm DC power cord size?

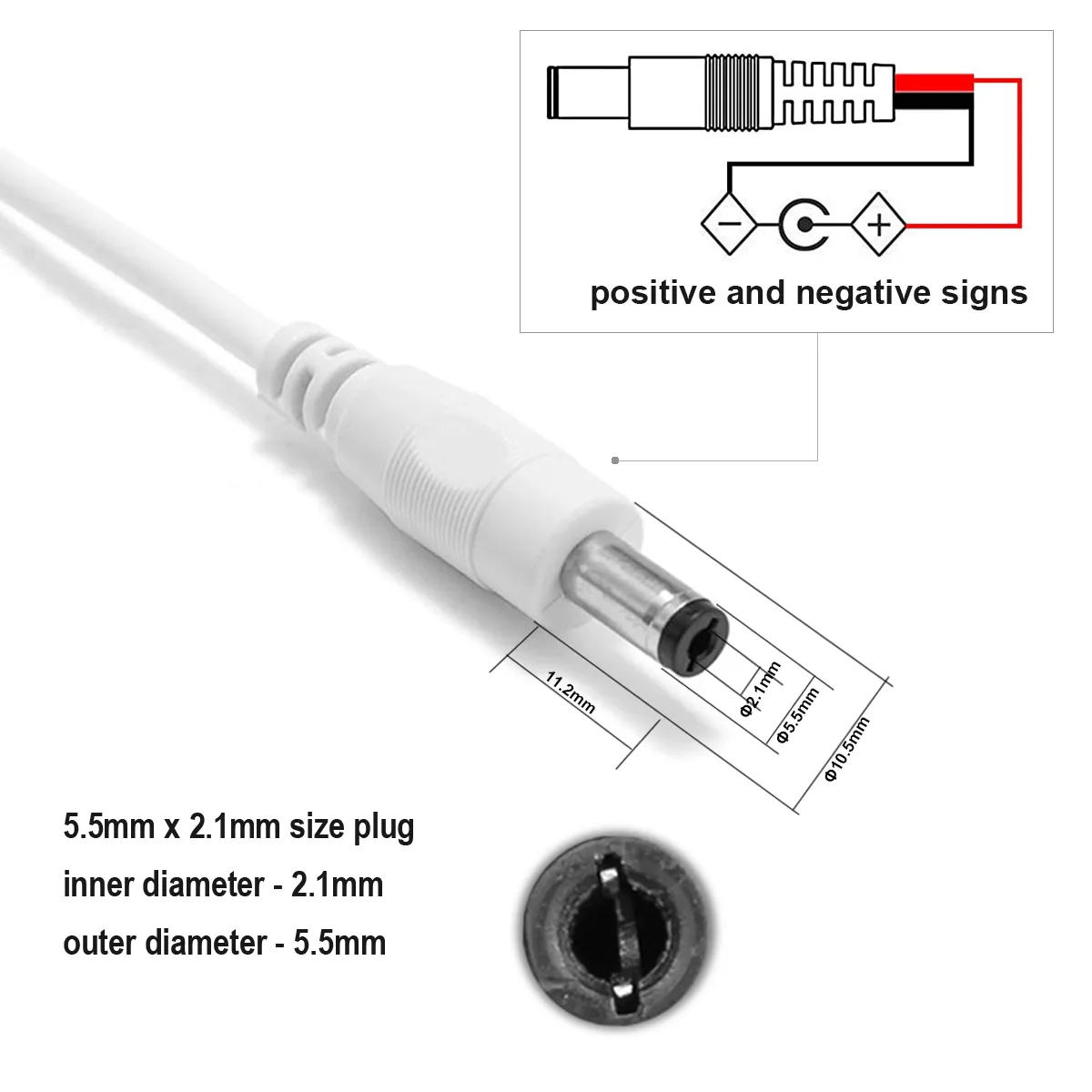

dc power cable male female plug 5.5mm 2.1mm

What is a 12v DC power cord used for?

This DC power cord is ideal for strip lights, led signage, CCTV camera, lamp bulb lighting, car, monitors, printers, sensors, DVR, external hard drives, audio mixing, and recording equipment, or anything that requires DC input and accept 5.5mm 2.1mm plug.

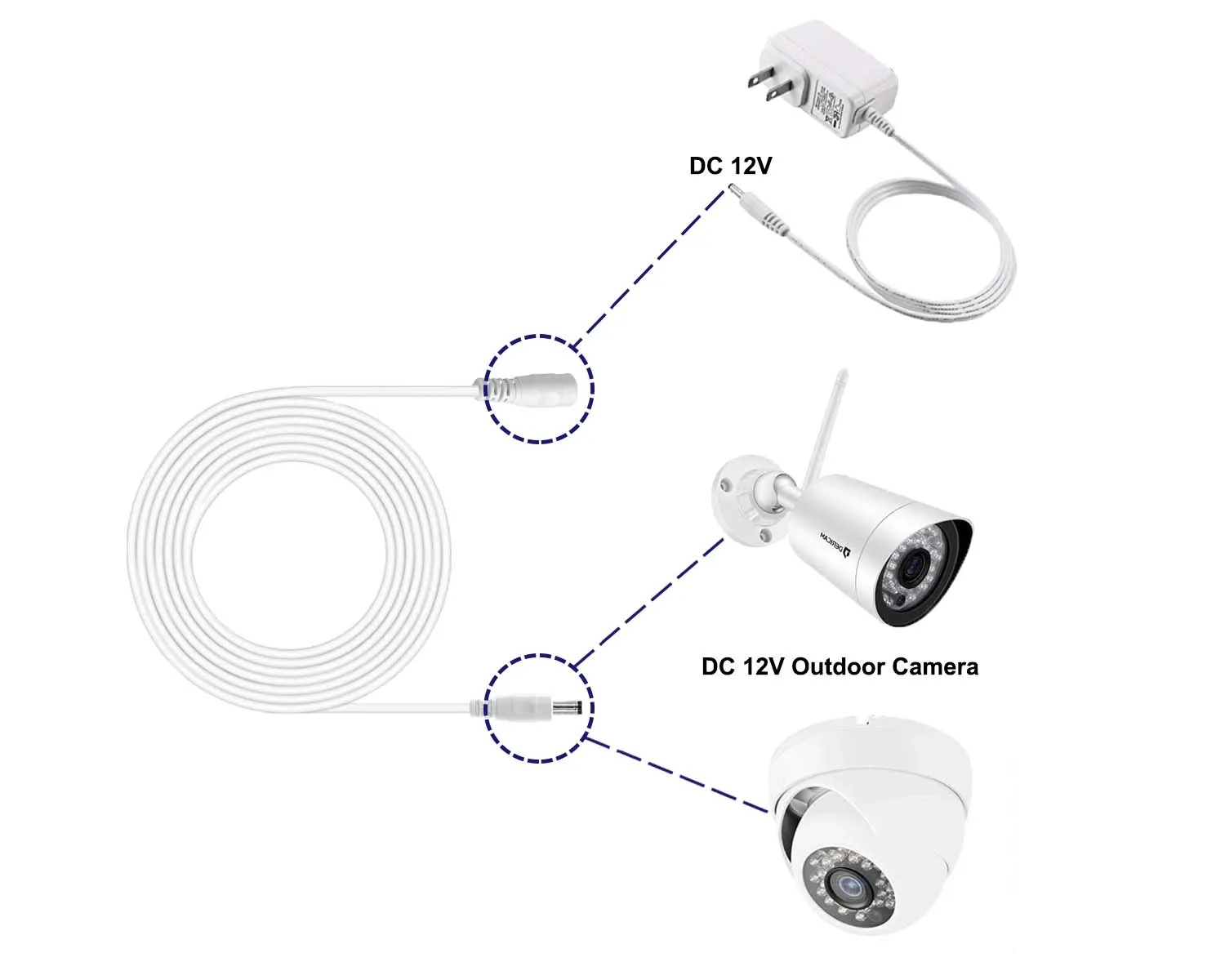

12v dc power cord applications

Are you looking for the best 12v DC power cord supplier?

As a professional DC power cord supplier from China, DelightFire can customize all 12v DC power cords, such as DC power pigtail cable and DC power splitter cable. You can get the best dc power cord wholesale price from the manufacturer directly without any distributor. From 2012 to now, we have served more than 10000+ customers who custom wire and cable as they need. Don’t hesitate anymore; tell us your needs to custom an affordable DC power cord from us.

Weight 0.17 kg
Dimensions 1 × 1 × 1 cm
