How to Choose The Right Electronic Wire?

The electronic wire is an abbreviation for the internal wire of electrical equipment, energized mainly by weak electricity, and the strong category of cable is a different concept.

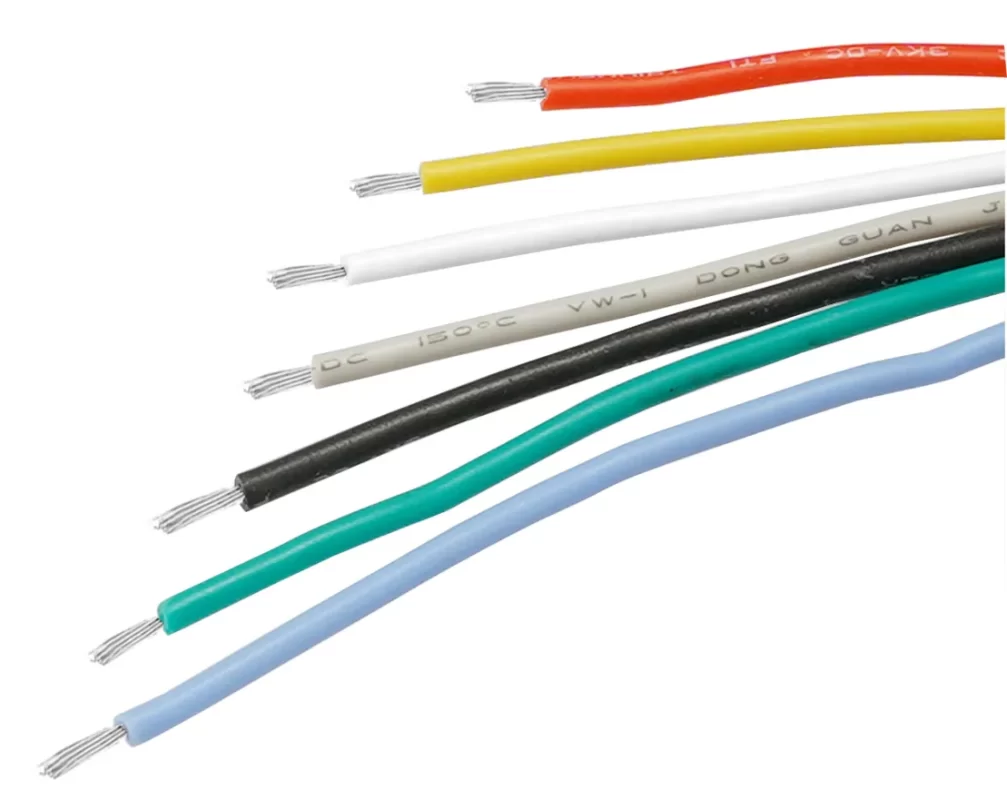

What is electronic wire called?

Electronic wire in English: ELECTRIC WIRE, generally used for weak electrical engineering, such as electronic, electrical equipment, internal wiring, etc… It has the advantages of being light, thin, short, small, variety, specifications and insulation, and good safety.

An electronic wire is mainly used in the electronics industry. Currently, in the electronics field, the more famous manufacturers of Dongguan Sheng brand wires, DelightFire wires, and other brands, electronic wires by material classification can be divided into PVC, SRPVC, XLPE electrical wires, UL-certified electric wire, low smoke halogen-free electric wire. Electrical wire quality certification system: the main UL Underwriter Laboratories Inc. UL Safety Laboratory is the most authoritative in the United States but also the world’s largest private institution engaged in safety testing and identification.

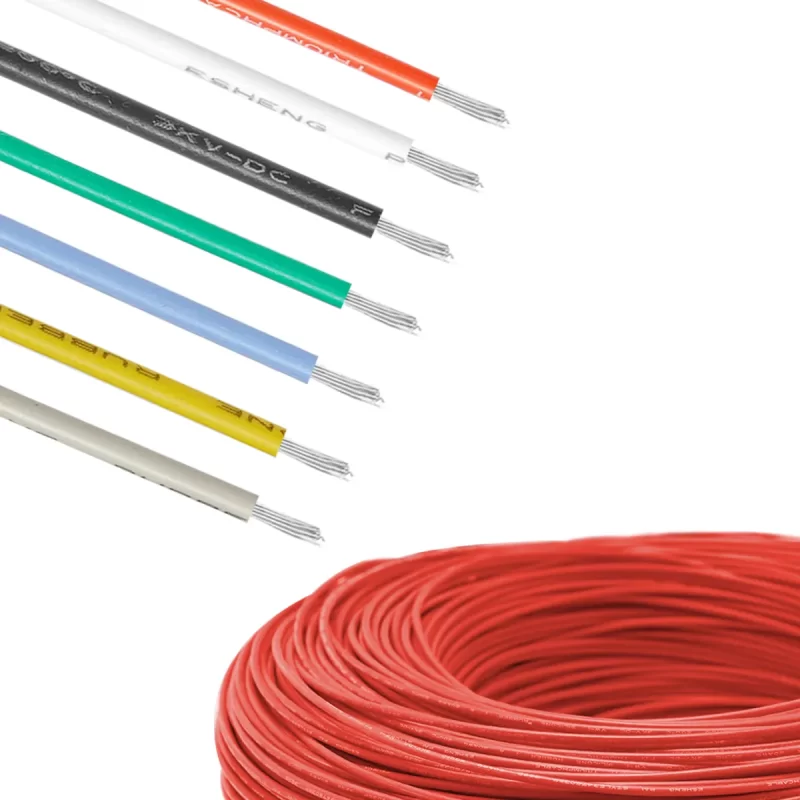

Types of electronic wires

The circulation of electronic wires on the market is distinguished as UL standard, 3C standard, VDE standard 3 series of wire, to AWG as a unit of general UL standard, to ** square as a unit of general 3C standard or VDE standard, the domestic electronic wire manufacturers mainly to 3C with UL these two standards.

Specific distinctions are mainly reflected in the printed word above the difference:

3C standard: CCC A0438 ****227 IEC 08 (90) 300/500V **mm GB4035 5-1997 SHENGPAI

UL standard: E249743 AWM 1007 **AWG 80℃ 300V VW-1 CHENGXING AWM I I A **awg 80℃ 300V FT1

VDE Standard: VDE H05V-K 300V/500V **mm NR.485***23 SHENGPAI

Which material is best used to make electronic wires?

Electronic wires are typically made of copper or aluminum, either bare or insulated, and typically covered in a thin layer of Polyvinyl Chloride (PVC). If they have a PVC sheath, the PVC is colored to indicate whether the wire is a neutral, ground, or hot wire in your electrical installation.

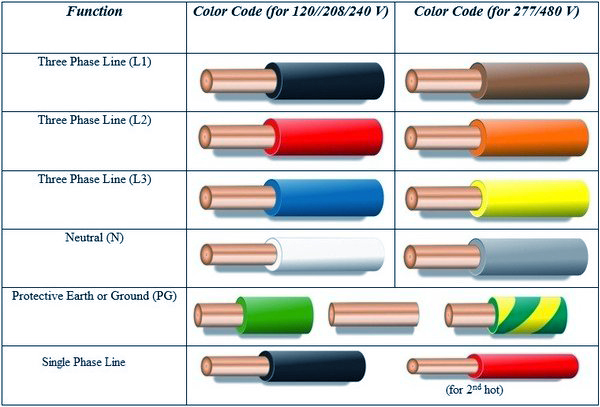

What are the electric wire colors?

The protective ground is green or green with a yellow stripe. The neutral is white, the hot (live or active) single-phase wires are black, and red in the case of a second act. Three-phase lines are red, black, and blue.

Specifications of electronic wires.

General electronic wires, its common denomination is AWG (American Wire Gauge) as a unit, the internal conductor should be divided into bare copper, and tinned copper by normal standards. Commonly used regular wire diameter specifications are shown in the following table.

UL1007 electronic wire specifications:

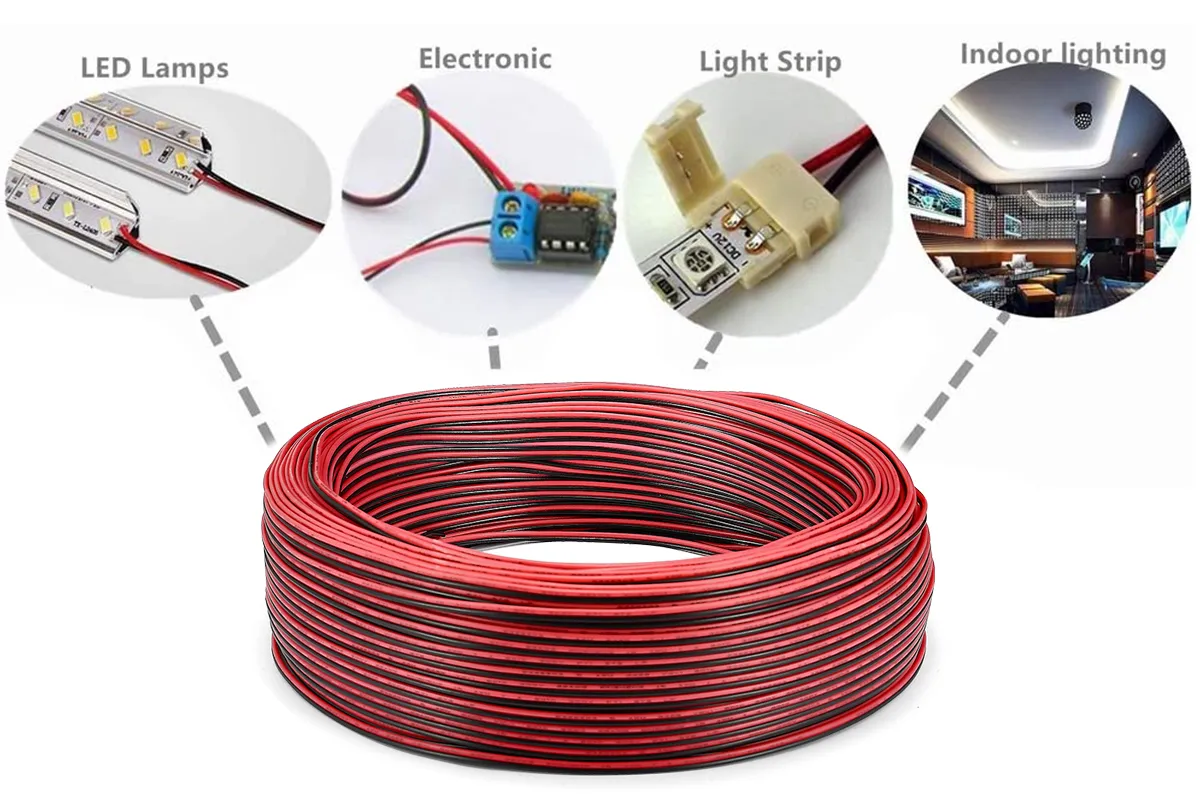

What applications of electronic wire in life?

It is very widely used in daily life and can be found everywhere. The most common is in the computer network cable, telephone lines, etc., it has a large layer of external insulation material generally gray more, the line may be marked with the type of electronic wire and other words, insulation skin contains much small thin copper wire inside, some are pure copper, some are some composite copper and other metal alloys, thin copper wire was wrapped with colorful insulation material.

The reason why the internal line distinguishes a lot of colors because this application in the network communication line in the installation of the interface has very high requirements must be arranged in a particular order, installed in the interface small transparent clips inside to normal use, the color is for the manufacturing staff can well distinguish the order of the installation of electric wire, directly by the color arrangement can be, very convenient to save time.

This line is also necessary for many devices inside, especially small electric products, such as remote controls, shavers, etc. The power of these products is much smaller than the normal life with the voltage, so the internal can not use ordinary wire to connect, to use this conductive weak wire can. Its specifications and the type of wire in the international are unified regulations.

Where to buy electronic wire?

If you go online, you’ll probably find many sites that offer “amazing” electronic wires prices. Don’t let that fool you! When looking for wiring for a top project, it’s vital that you also remain focused on the success of your project and company value dissemination. Of course, price is an important consideration. But, when making electrical wire procurement decisions, never underestimate the importance of quality.

In this DelightFire Electronic Wire Buyers Guide, we’ve highlighted some of the critical qualities in wire manufacturing. Before placing your order, ensure the electrical wire you purchase meets the highest manufacturing specs. Suppose you order cables from a manufacturer without proper credentials or someone without expertise in electric cable manufacturing. In that case, they may offer you a great electronic wire price, but poor quality could result in fire hazards to your project.
