18 Gauge RGB Wire For Lamp LED Lights

This RGB wire made with PVC jacket and copper is applicated to electronics, toy car batteries, lighting, etc. We also support customized with small MOQs at competitive prices, and all products are RoHS compliant.

SKU electrical-wire-wholesale-18-Gauge-lsccw0147 Categories ,

18 gauge RGB wire supplies power in low-voltage, low-current applications such as RGB bulb lamps and 5050 RGB strip lights.

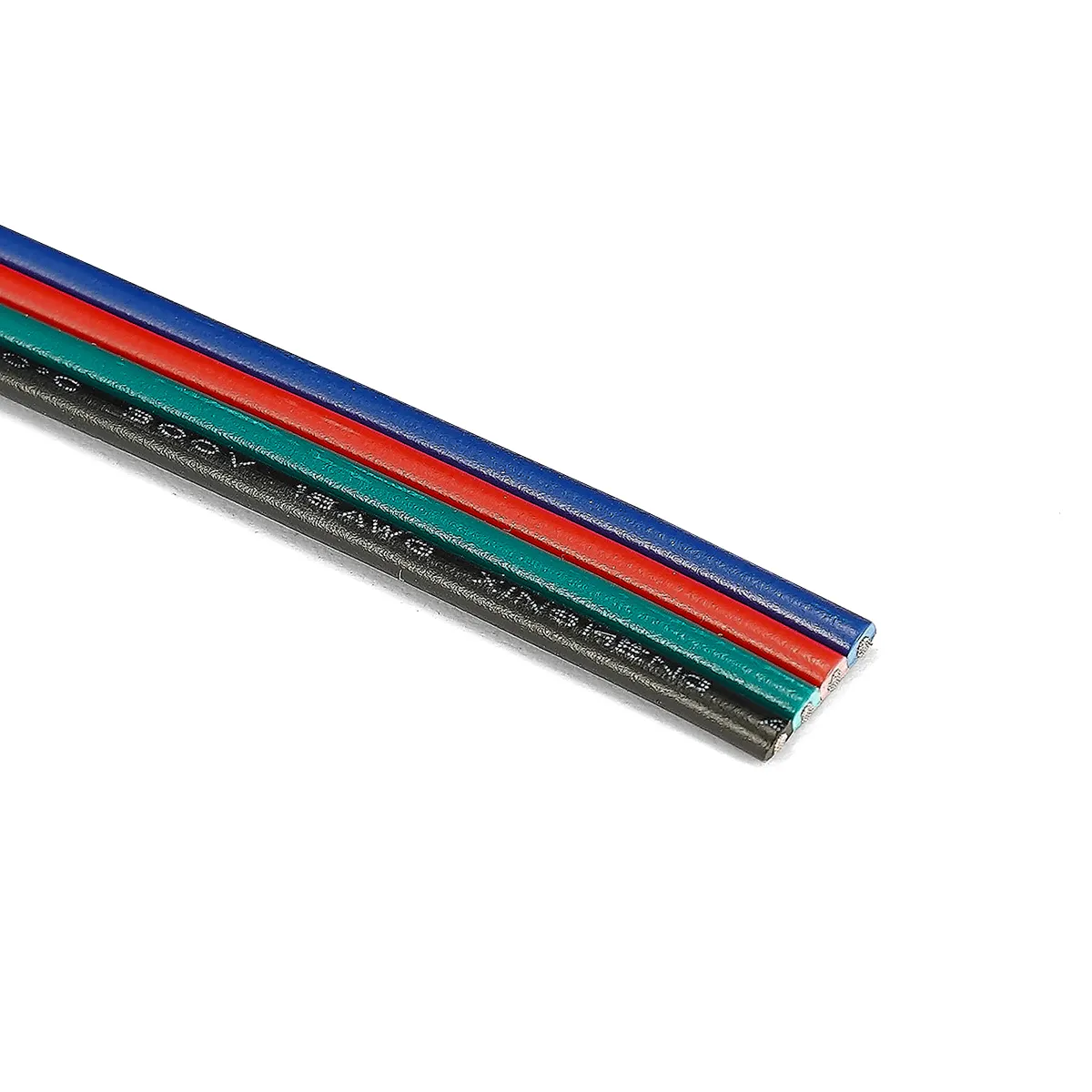

18 Gauge RGB Wire

Benefits of RGB Wire

RGB Wire is used to supply power in low-voltage, ideal interior hookup wire for 5050 RGB color strip lights, for electronic appliances and equipment, transformer, lamps, and the motor lead wire connection, led strip light, led splitter connection, etc. This wire is useful for quick installations and easy runs.

What are electrical wire colors available? In 4 conductor led wire, the available colors are black, green, red, and blue. But the led wire gauge, length, and colors can be custom with small MOQs.

Benefits of RGB Wire

Specifications of 18 Gauge RGB Wire

Conductor Quantity: 4
Wire Color: black, green, red, and blue
Conductor Size: 18AWG
Construction (No./mm): 34/0.14
Conductor Material: stranded tinned copper
Insulation Material: PVC
Available Wire Lengths: 100m/roll
Outside Diameter: 2.1mm
Operating Voltage: 300V max.
Temp. Rating: -20 ~ 60°C
Compliance: RoHS

Package Includes:

1 x 100m/roll 18 gauge RGB wire


  • The cable length, color, and type can be custom; please contact us to ask for the price and minimum order quantity!

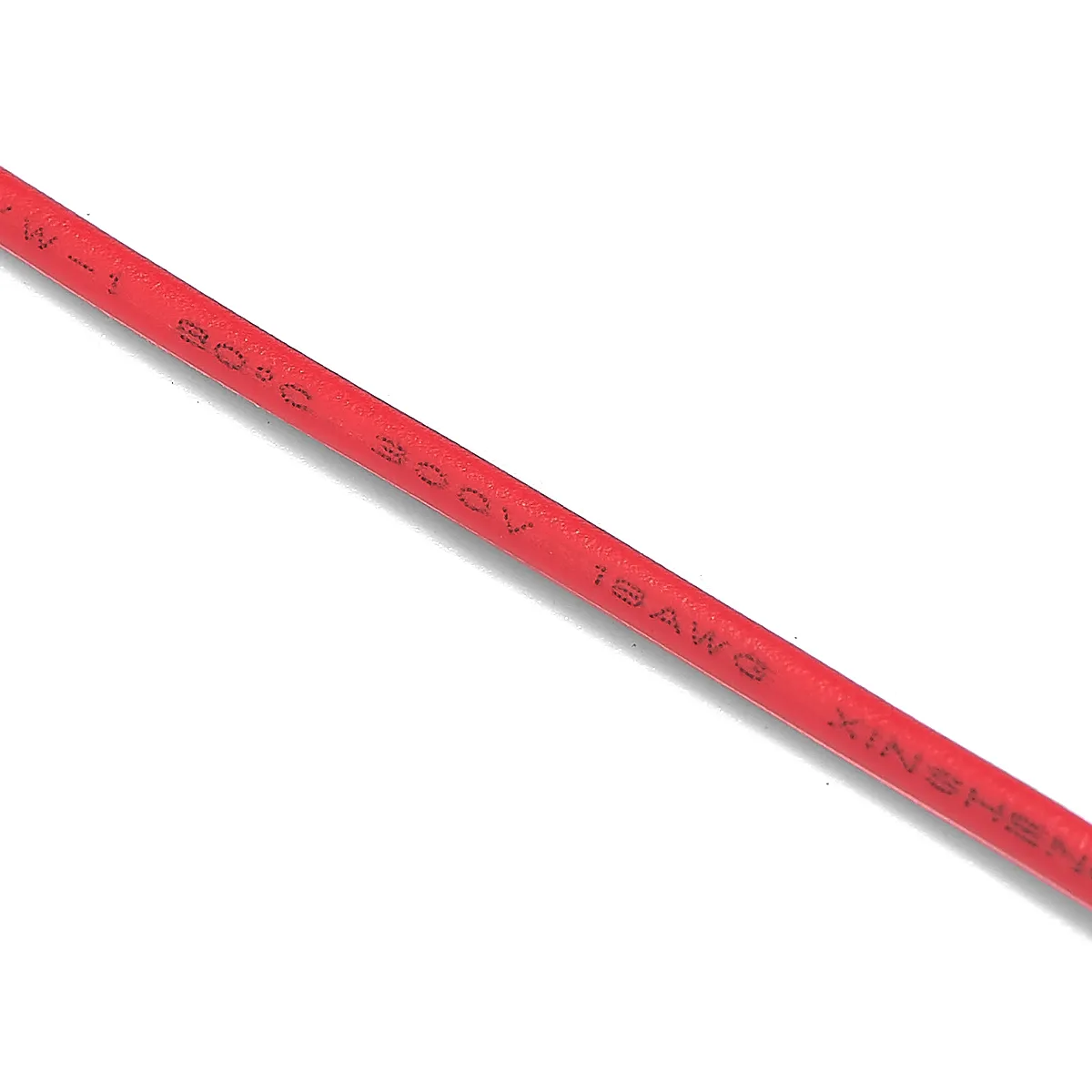

18 AWG red black electrical wires

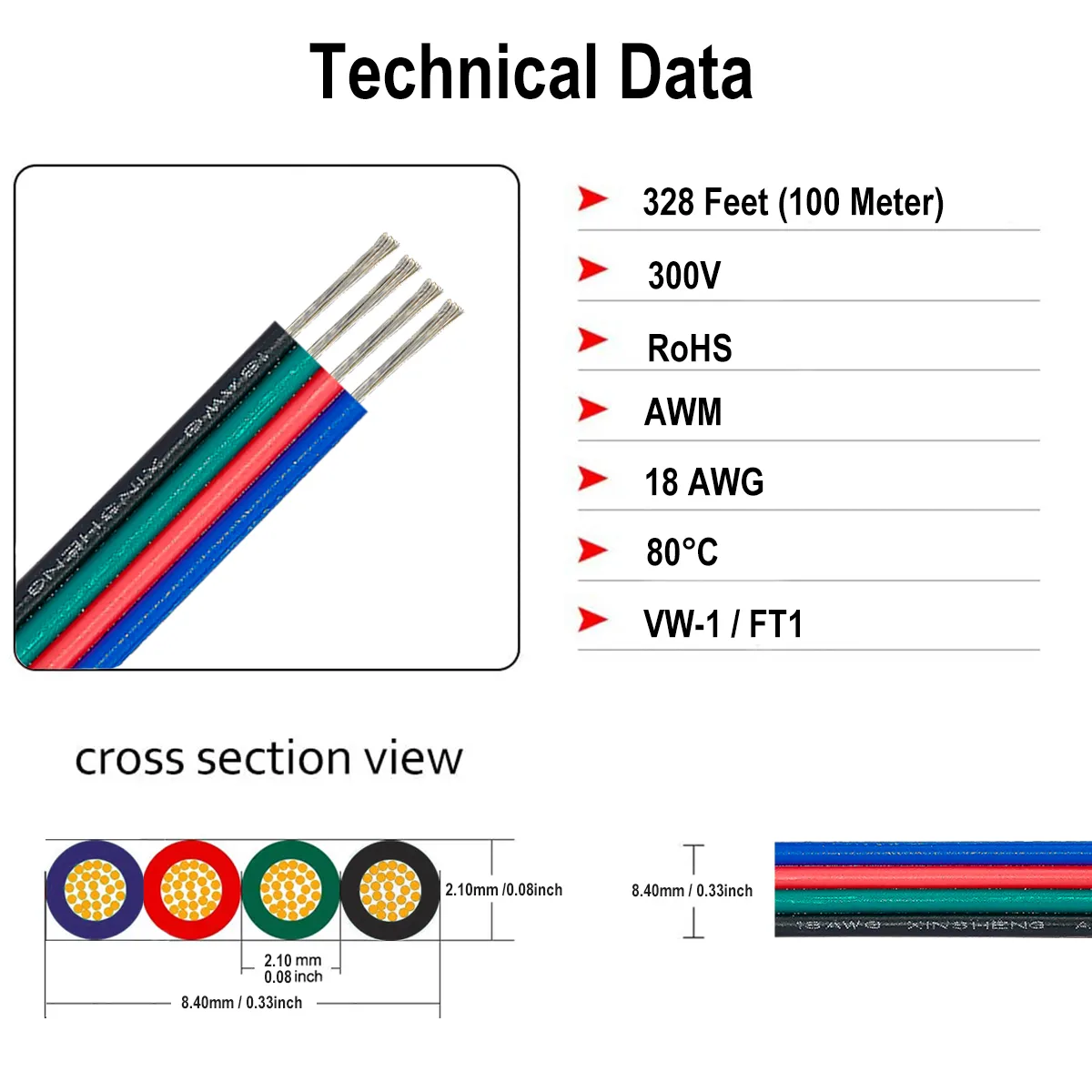

18 Gauge RGB Wire Diameter:

18 Gauge RGB Wire Diameter

Applications of 18 gauge electric wire:

Suitable for RGB led strip, RGB bulb lamp, 24V 12V RGB controller, RGB led driver, etc.

Applications of 18 gauge electric wire

As a professional electrical cable manufacturer from China, DelightFire can customize all types of electrical wire, such as 22 gauge RGB wire, 20 gauge RGB wire, and 18 gauge RGB wire. You can get the best wholesale electrical wires price from the manufacturer without any electrical wire distributor. Don’t hesitate anymore; tell us your needs to custom an affordable led extension wire from DelightFire.
