What is a DC power y cable?
DC power y cable, also called DC power splitter cable or 1 to 2-way power splitter cable, it one side with a female 2.1mm*5.5mm jack, the other side with 2 male plugs. It is ideal for security CCTV parking cameras, LED strip lights, digital set-top boxes, wireless devices, TV, or any application that requires connectivity with power.
Specifications of DC power y cable
| Conductor Quantity: | 2 |
| Wire Color: | white |
| Male Wire Conductor Size: | 20AWG / 0.5mm2 |
| Construction (No./mm): | 21/0.15 |
| Outside Diameter: | 4.0mm |
| Inside Diameter: | 1.5mm |
| Female Wire Conductor Size: | 22AWG / 0.3mm2 |
| Construction (No./mm): | 17/0.14 |
| Outside Diameter: | 3.5mm |
| Inside Diameter: | 1.3mm |
| Conductor Material: | stranded copper |
| Insulation Material: | Polypropylene |
| Jacket Material: | PVC |

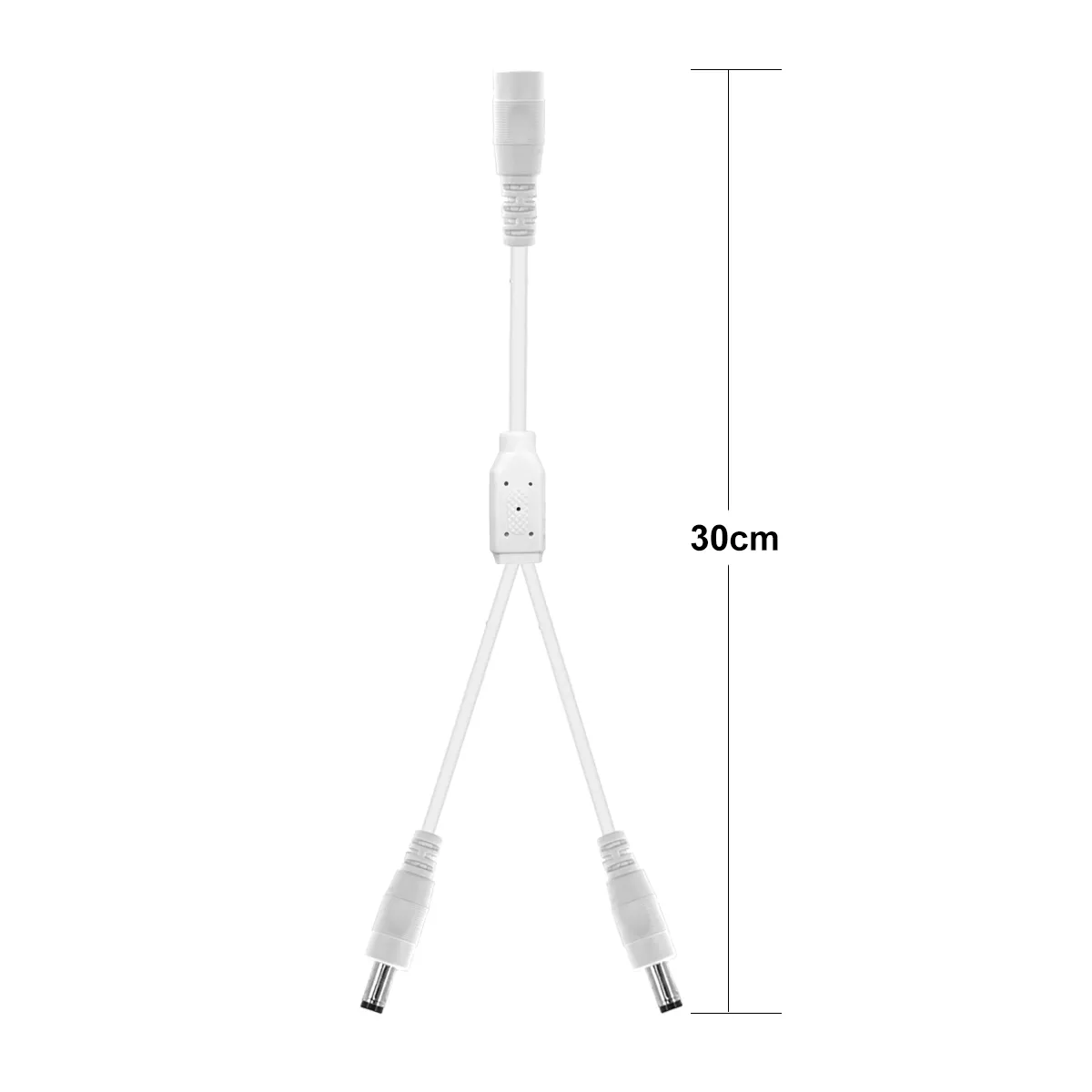

| Available Wire Lengths: | 30cm |
| Operating Voltage: | 300V max. |
| Temp. Rating: | -20 ~ 60°C |
| Compliance: | RoHS |
Package includes:
1 x DC power y cable
Note: The wire gauge, cable length, and color can be custom. Please freely contact us and ask for the price and minimum order quantity!
The DC power y cable raw material
The DC power splitter cable conductor material is oxygen-free copper and covered with PVC.
What is Oxygen-free copper?
Oxygen-free copper (OFC) – is copper with high purity, very little oxygen content and other impurities, has a lower internal resistance, is not easy to oxidize, and its conductivity is 0.5% to 2% higher than that of general TPC copper. There are so-called 4N, 5N, 6N, 7N, and 8N copper in purity, and it can reach 4N (99.99%) copper, which is very good. Because it is not easy to measure with general instruments, it is difficult to judge how many N. According to the crystal structure, there are polycrystalline copper, large crystal copper (LC-OFC), and single-crystal copper (OCC), all of which are to minimize the resistance and reduce the crystal over effect. But the price is high, and ordinary consumers rarely care.
Oxygen-free copper has no hydrogen embrittlement phenomenon, high conductivity, good processing performance, welding performance, corrosion resistance, and low-temperature performance OFC (oxygen-free copper): metal copper with a purity of 99.995% is generally used in audio equipment, vacuum electronic devices, Among the electrical and electronic applications such as cables, there is LC-OFC (linear crystalline oxygen-free copper or crystalline oxygen-free copper) in oxygen-free copper: the purity is above 99.995% and OCC (single crystal oxygen-free copper): the highest purity, at 99.996 % and above are further divided into PC-OCC and UP-OCC, etc.
The difference between oxygen-free copper and pure copper
Oxygen-free copper: Oxygen-free copper is made of high-purity cathode copper, and the melt is covered with calcined charcoal.
Lid, smelting, and casting under sealed conditions produce purple with an oxygen content below 3010-6 copper.
Pure copper: It is the copper with the highest copper content, and ordinary pure copper is the mass fraction of copper that is not low
at 99.7%; oxygen-containing copper with very few impurities has a purple-red appearance, so it is also called purple copper.
What is PVC?
PVC’s full name is Polyvinylchloride, the main component is polyvinyl chloride, and other components are added to enhance its heat resistance, toughness, flexibility, etc. The top layer of this surface film is lacquer, the main component in the middle is polyvinyl chloride, and the bottom layer is a back coating adhesive. It is a well-loved, popular, and widely used synthetic material.

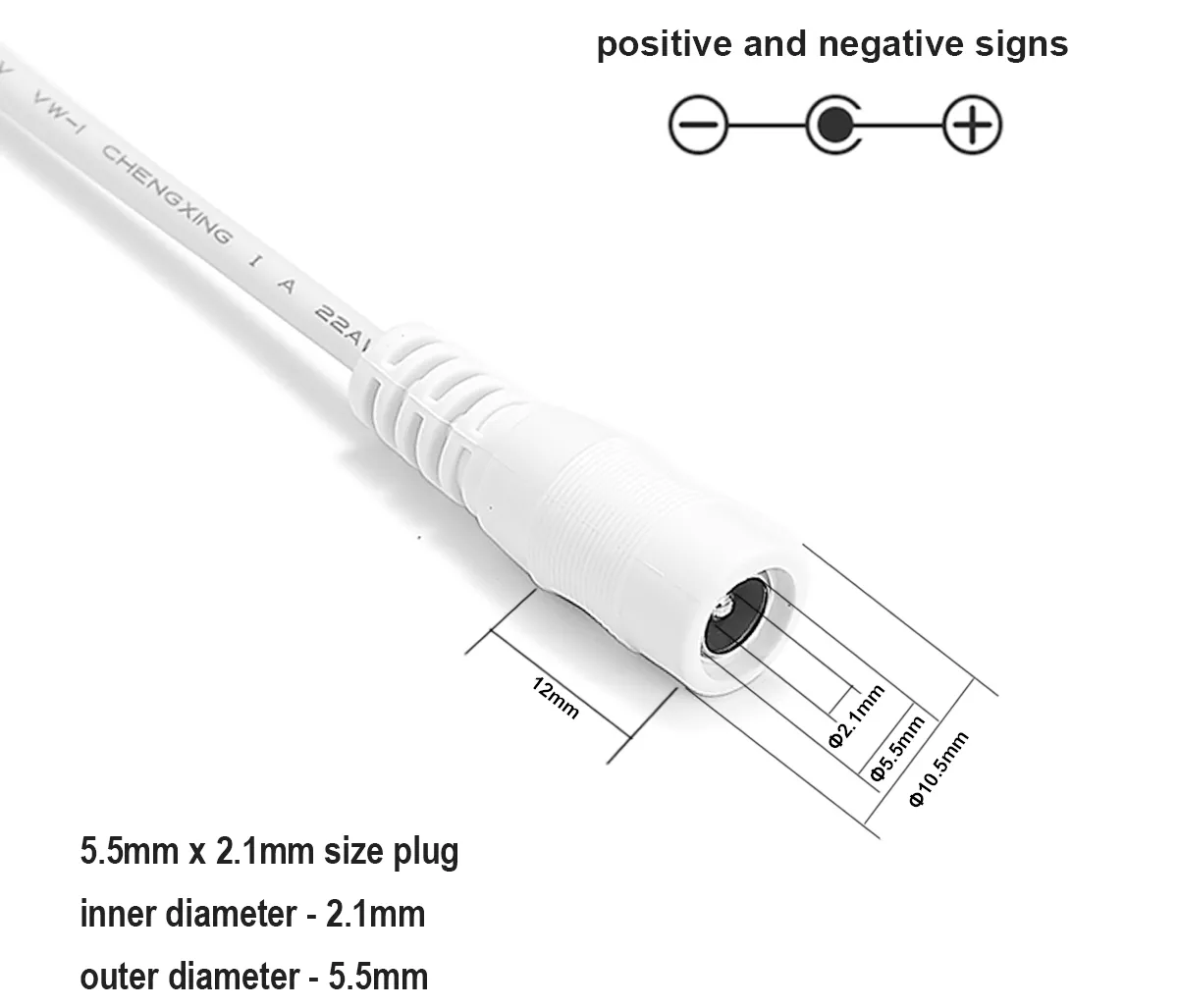

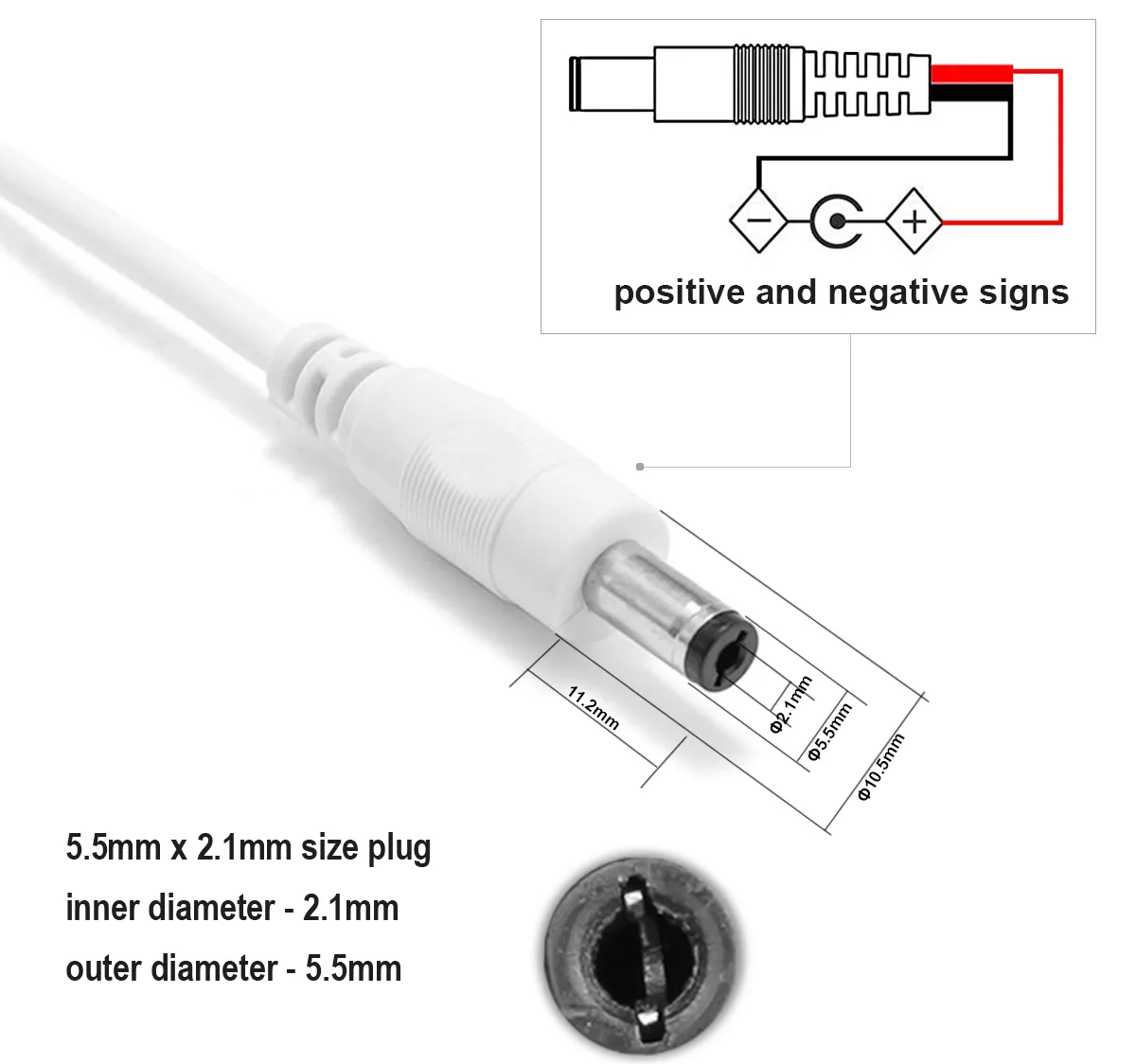

What is the DC power y cable connector size?

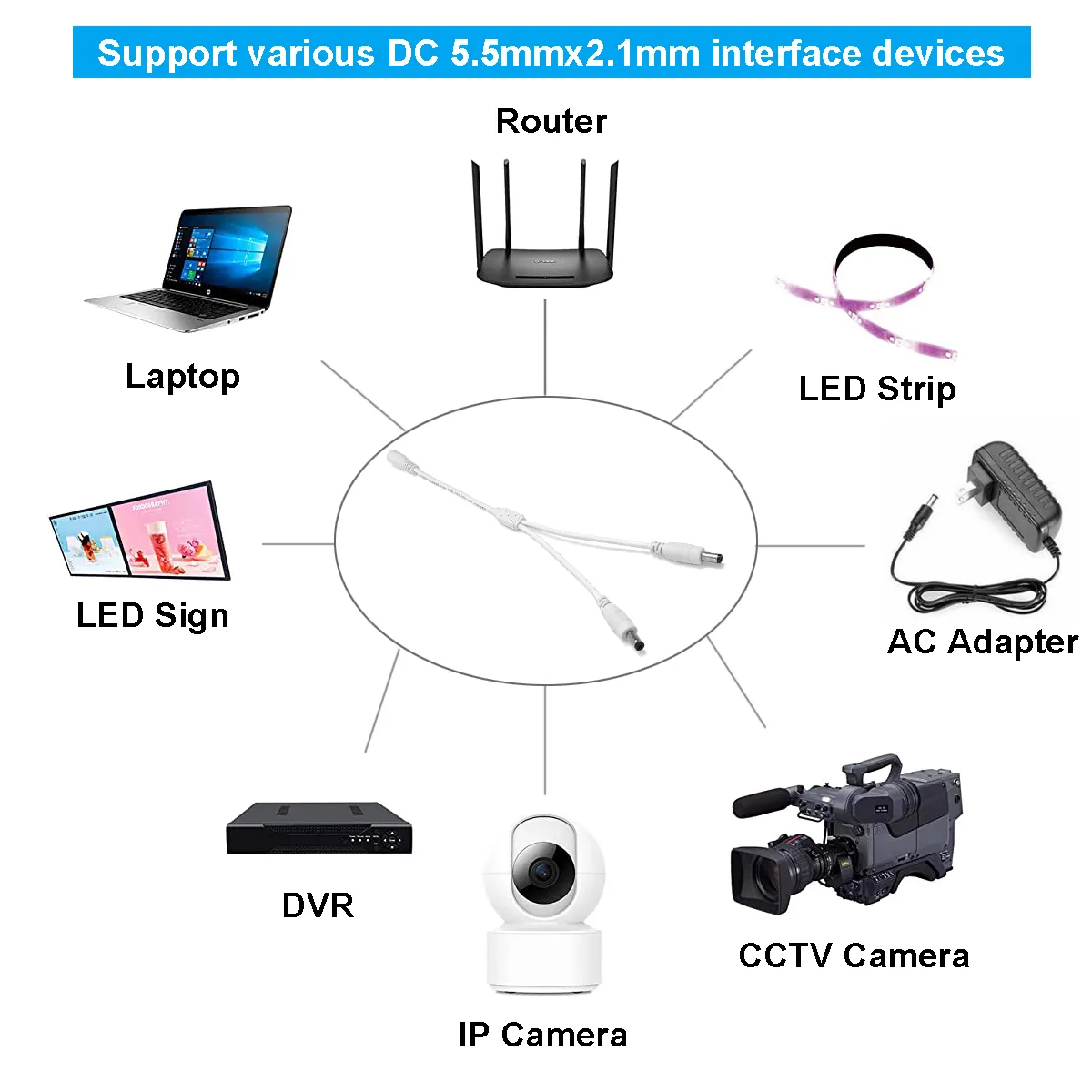

What is a DC power y cable used for?
This DC power y cord is ideal for LED strip lights, CCTV cameras, lamp bulb lighting, or anything that requires DC input and accepts a 5.5mm 2.1mm plug.
Where To Buy DC power y cord?
We hope this DC power y cord buyers guide provides everything you need to know about the DC power splitter cord you need. Our objective in providing this information was simple: Whether it’s a DC power y cable you need, a CCTV camera DC power supply splitter cable, or a DC power extension cable that you’re looking for – this information should help you.
It’s now time for you to source a suitable DC power y cable for your application. But, before you ask yourself: Where is the best place to buy a 1 female to 2 male power y cable near me – and rush to place an order, consider the following:
Who the DC power y cable assembly manufacturer and supplier is?
Are they experienced?
Have they been in the DC power cable business long?
Do they have the expertise and knowledge to produce high-quality products?
Here at DelightFire, we have vast experience manufacturing and supplying some of the industry’s best DC power y cables. Our well-respected production process and extremely diligent quality assurance standards ensure our products are of the highest quality available on the market.
Of course, when you’re looking to buy the best DC power splitter cable in the business, one factor always matters Pricing! At DelightFire, we’ve made it a point to make quality and professionalism a hallmark of our business. While many of our other peers and competitors in the cable industry link lower prices to cheaper quality. But we are different. You’ll find value for money when you buy or custom your DC power y cord from us.
You also may be interested in the DC power extension cable products. It is useful to extend the power supply cord with your CCTV camera project.
