What is a DC female to 4 male power splitter cable?
DC female to 4 male power splitter cable one side with a 1 female 2.1 mm*5.5 mm jack, the other side with 4 male plugs. It is perfect for when you want to power multiple low-powered devices from one power adapter.
What colors are available with a 1 to 4-way power splitter cable?
This 4-way DC power splitter cable’s available colors are black and white. The DC power splitter wire gauge, cable length, and colors can be custom with small MOQs. Please read this article, DC power cable custom service, about how to complete a DC power splitter cable project.
Specifications of DC female to 4 male power splitter cable
| Conductor Quantity: | 2 |
| Wire Color: | black |
| Male Wire Conductor Size: | 20AWG / 0.5mm2 |
| Construction (No./mm): | 21/0.15 |
| Outside Diameter: | 4.0mm |
| Inside Diameter: | 1.5mm |
| Female Wire Conductor Size: | 22AWG / 0.3mm2 |
| Construction (No./mm): | 17/0.14 |
| Outside Diameter: | 3.5mm |
| Inside Diameter: | 1.3mm |
| Conductor Material: | stranded copper |
| Insulation Material: | Polypropylene |
| Jacket Material: | PVC |

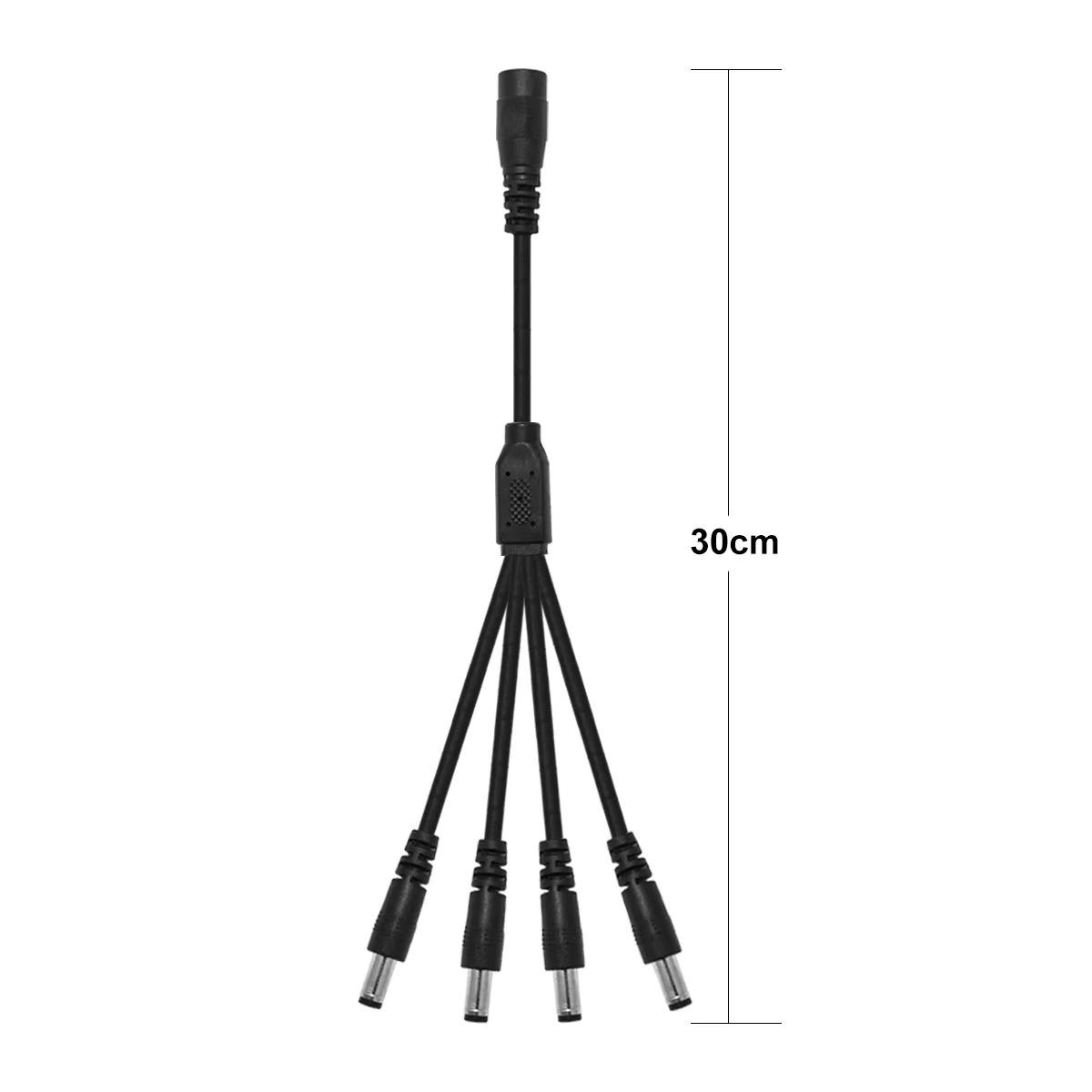

| Available Wire Lengths: | 30cm |
| Operating Voltage: | 300V max. |
| Temp. Rating: | -20 ~ 60°C |
| Compliance: | RoHS |
Package includes:
1 x DC female to 4-way DC power splitter cable
Note: The wire gauge, cable length, and color can be custom. Please freely contact us and ask for the price and minimum order quantity!
What is a DC female to 4 male power splitter cable used for?

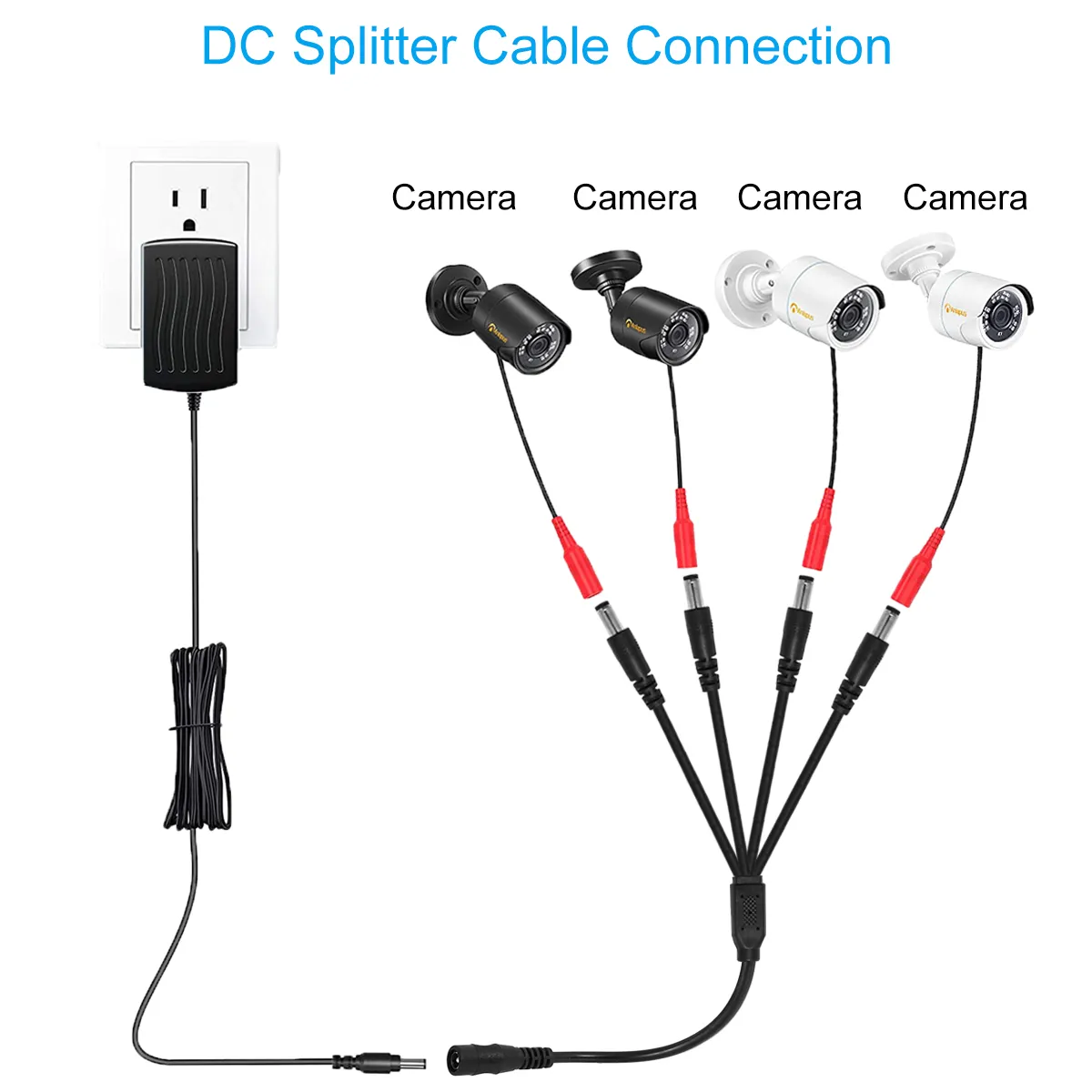

The DC female to 4 male power splitter cable is typically used to share a low voltage power source with up to four devices, such as 12V DC CCTV security cameras. This splitter can also be used with different devices in the same installation. For example, you may connect 2 video CCTV cameras and 2 audio surveillance microphones as long as all devices use the same low-voltage power. The single-end cable has a 2.1mm female plug, and the 4-way male power splitter cable quad end has four 2.1mm male connectors.
