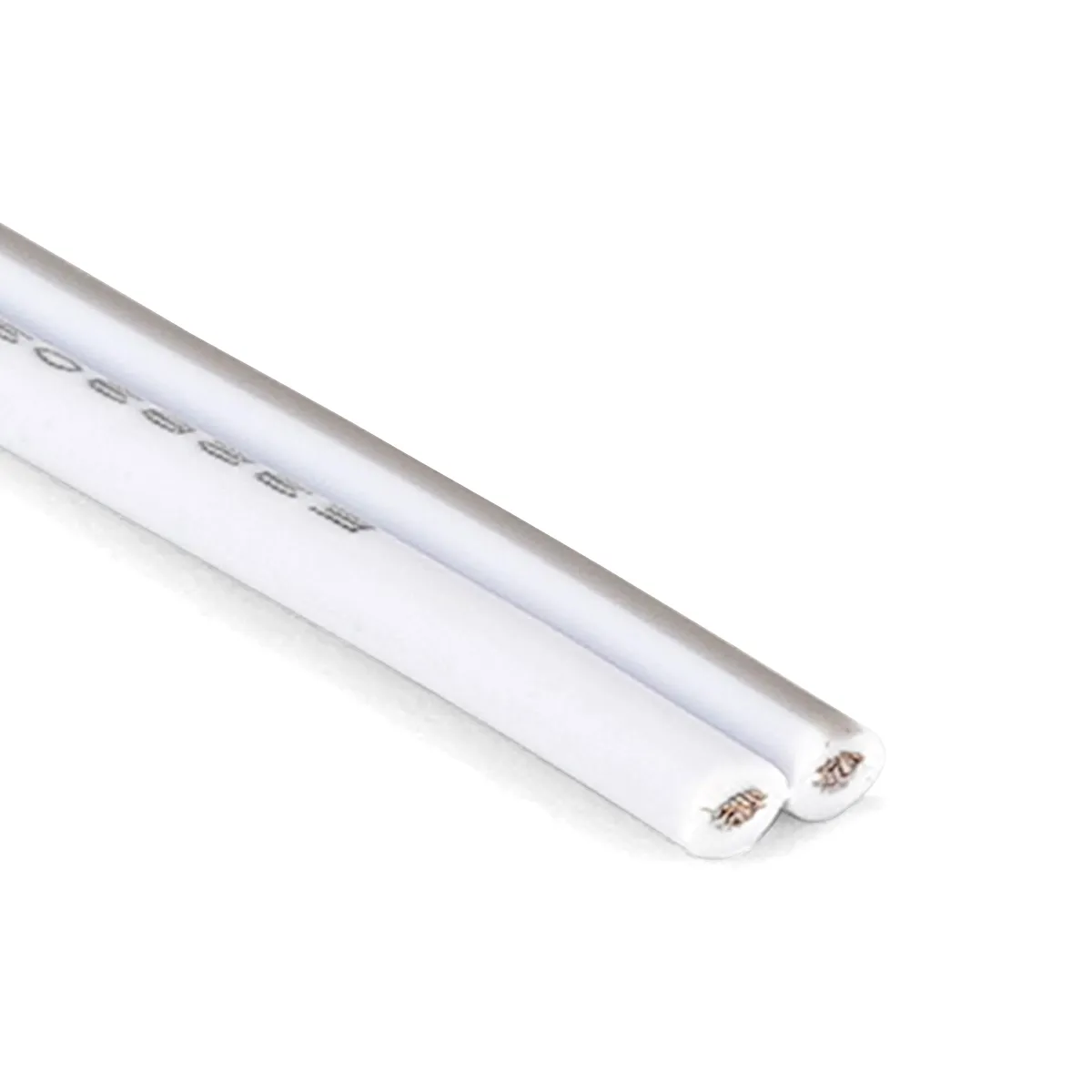

White/Gray 22 gauge electrical wire made with high quality PVC jacket and tinned copper wire applicated to SM JST connector, electronic, toy car batteries, and strip lights, and can be custom with small MOQs. Let us start making the best offer for the 22 gauge tinned copper wire.
Benefits of 22 gauge electrical wire?
22 Gauge electrical wire is typically used to supply power in low-voltage, low-current applications such as LED lighting, SM JST connector, electronic toy car battery, solar panel, battery holder lead wire and strip lights, etc. They are ideal for a situation where conductors need to be routed quickly. This 22 AWG electrical wire is useful for quick installations and easy runs.
What are PVC jacket colors available? In two conductor electrical wires, the available colors are red and black. But the wire gauge, length, and colors can be customized with small MOQs.
Specifications of white gray 22 gauge electrical wire
| Conductor Quantity: | 2 |
| Wire Color: | white, gray |
| Conductor Size: | 22AWG |
| Construction (No./mm): | 17/0.12 |
| Conductor Material: | stranded tinned copper |
| Insulation Material: | PVC |
| Available Wire Lengths: | 100m/roll |
| Outside Diameter: | 1.55mm |
| Operating Voltage: | 300V max. |
| Temp. Rating: | -20 ~ 60°C |
| Compliance: | RoHS |
Package Includes:
1 x 100m/roll 22 gauge electrical wire
Note:
-
Note: The cable length, color, and type can be customized; please freely contact us and ask for the price and minimum order quantity!
White Gray 22 gauge wire features

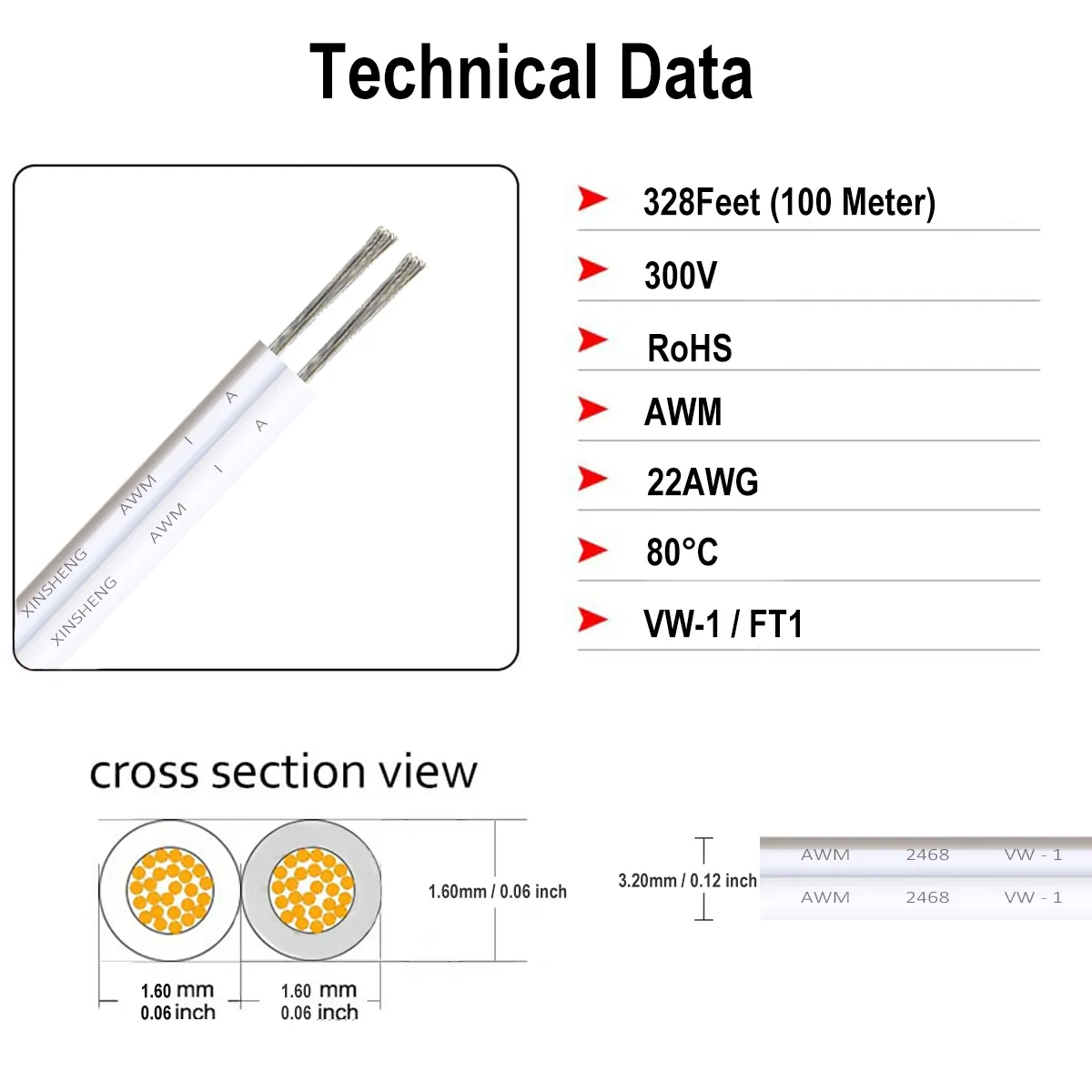

What are white gray 22 AWG electrical wire dimensions?
22 gauge wire conductor structure: 17/0.12TS (AS stands for bare copper, TS stands for tinned copper). Outside diameter: 1.3mm. Outside is polyvinyl chloride (PVC). Rated voltage: 300V Rated temperature: 80℃ Maximum conductor resistance at 20℃: 160Ω/km
What is a 22 gauge electrical wire used for?
Suitable for LED lighting, SM JST connector, electronic, toy car battery, solar panel, battery holder lead wire and strip lights, etc.
Are you looking for the best 22 gauge tinned copper wire manufacturer for 2020?
As a professional PVC wire manufacturer from China, DelightFire can customize all types of PVC wire, such as white gray 22 gauge electrical wire, white gray 20 gauge electrical wire, and white gray 18 gauge insulated electrical wire. You can get the best PVC wire price from the manufacturer directly without any PVC wire distributor. Don’t hesitate anymore; tell us your needs to custom an affordable PVC wire from DelightFire.
