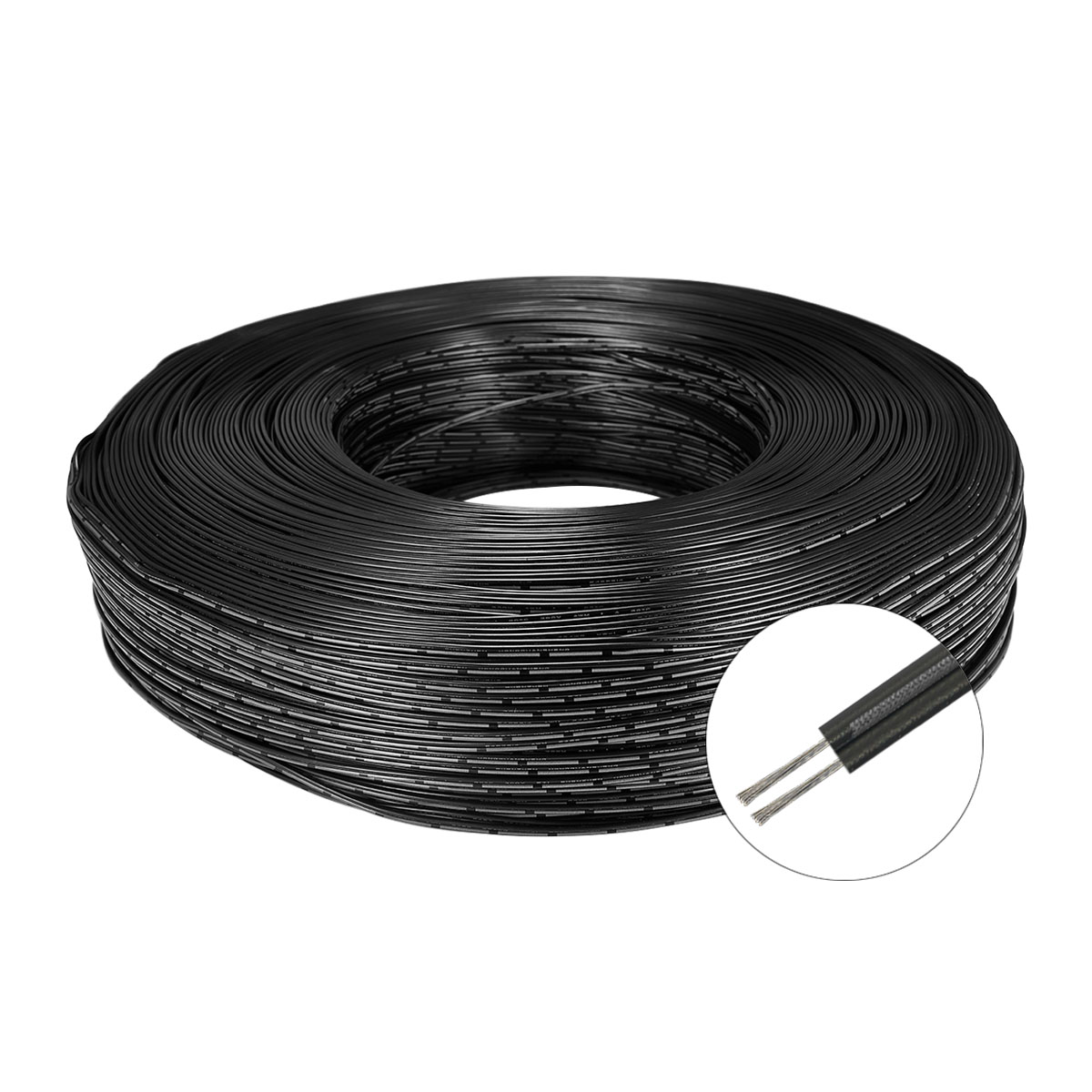

20 Gauge Wire Two Conductor With Black Color made with high-quality tinned copper and insulated PVC is applicated to electronic equipment and can be custom with small MOQs. Let us start making the best offer for 20 gauge stranded wire.
What is a black 20 Gauge wire?
We often see the word “20AWG” marked on wires, so what does the number “26” in front of it mean? The larger the AWG number, the higher the grade of the hole and the wire has to pass through, and the smaller the diameter of the wire.
AWG (American wire gauge), a standard for distinguishing wire diameters, is also known as Brown & Sharpe wire gauge. This standardized wire gauge system has been used in the United States since 1857.
This AWG size is often found in stranded cables, and it is an excellent choice for short cable runs. This cable can help you create patch cords in your home or business as they can also be shielded and stranded together, and the shielding helps to protect your cables from EMI.
Thicker wire has better physical strength and lower resistance, but the thicker the wire, the more copper is needed to make the cable, which results in a heavier, more difficult to install, and more expensive cable.
What are the benefits of 20 gauge tinned copper wire?
20 gauge tinned copper wire is typically used to supply power in low-voltage, low-current applications such as 12V COB led strip lights, electronic toy car batteries, bulb lamp lighting, etc.
They are an ideal choice for a situation where conductors need to be routed quickly, and this 22 gauge copper wire is useful for quick installations and easy runs.
Specifications of 20 AWG wire
| Conductor Quantity: | 2 |
| Wire Color: | black |
| Conductor Size: | 20AWG |
| Construction (No./mm): | 21/0.14 |
| Conductor Material: | stranded tinned copper |
| Insulation Material: | PVC |
| Available Wire Lengths: | 100m/roll |
| Outside Diameter: | 1.8mm |
| Operating Voltage: | 300V max. |
| Temp. Rating: | -20 ~ 80°C |
| Compliance: | RoHS |
Package Includes:
1 x 100m/roll 22 gauge wire
Note:
-
Note: The wire length, color, and type can be custom; please contact us to ask for the price and minimum order quantity!

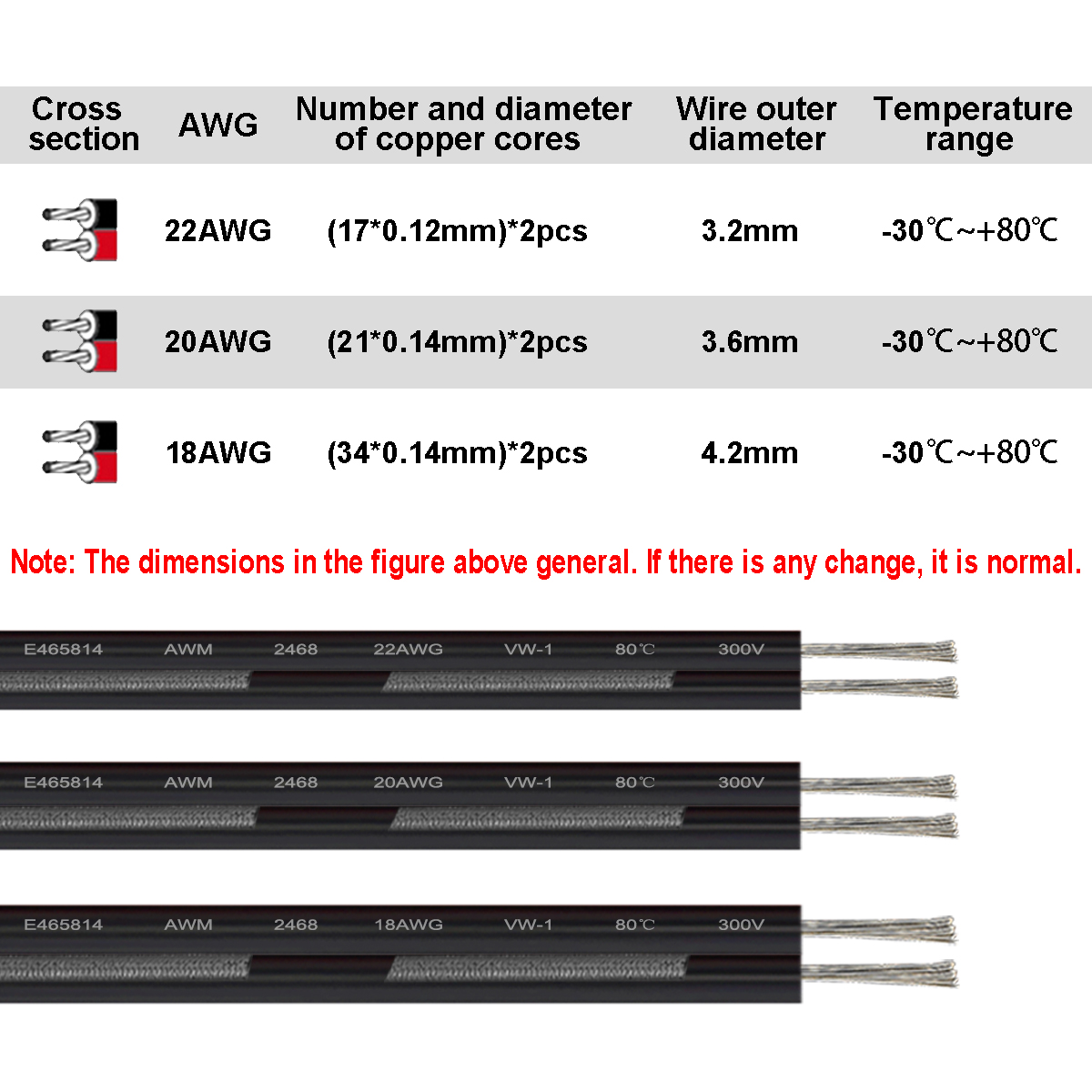

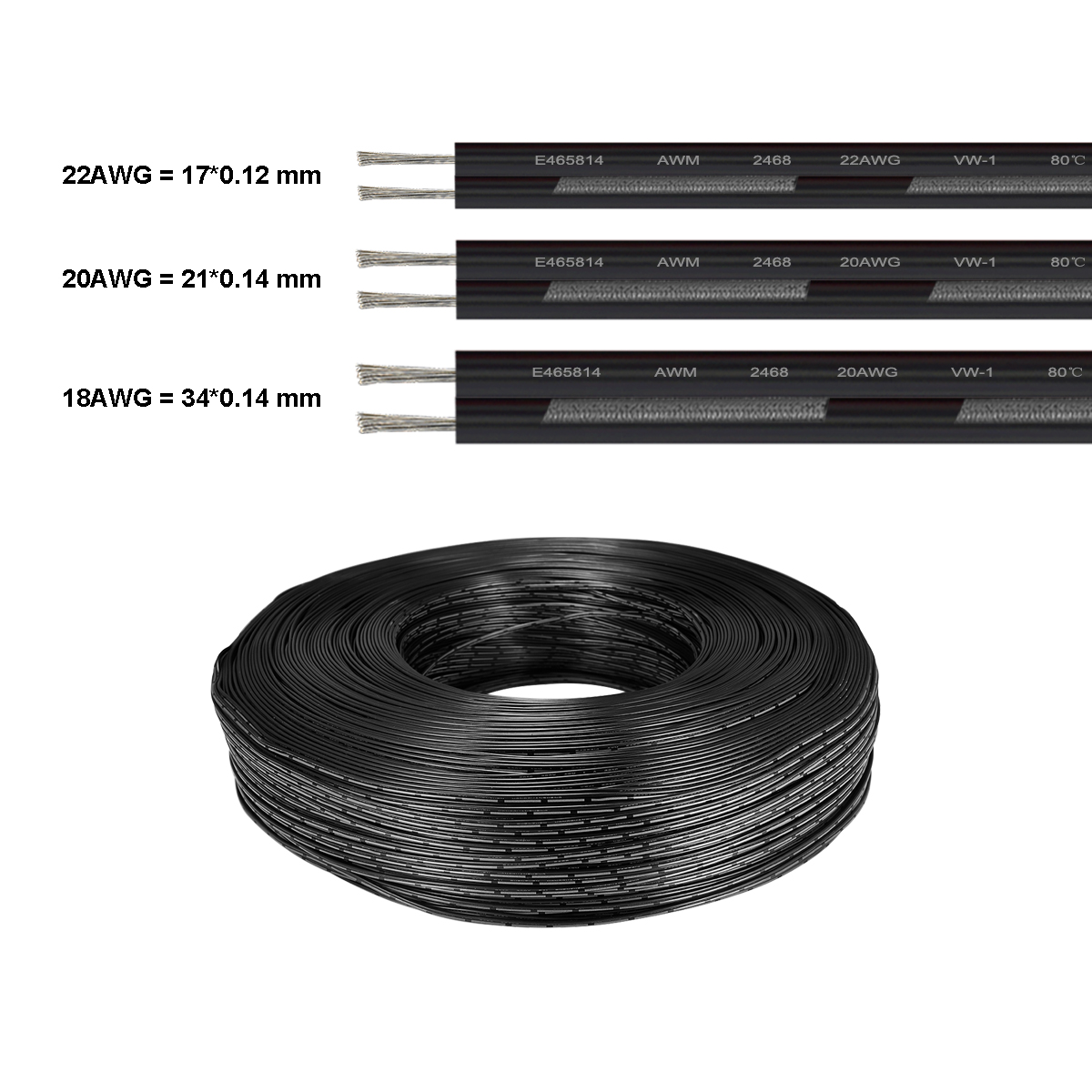

20 Gauge Stranded Wire Diameter:
What is 20 Gauge Wire Used for:
20 gauge wire is used for control panels, led strips, lamp bulbs, led drivers, toy car batteries, solar panels, electronic equipment, etc.
Where to buy 20 gauge wire?
As a professional electrical wire manufacturer from China, DelightFire can customize all types of gauge wire, such as 22 gauge wire, 20 gauge wire, and 18 gauge wire. You can get the best wholesale price from the manufacturer directly without any electrical wire distributor.
From 2012 to now, we have served more than 10000+ customers who custom gauge wire and cable as needed. Don’t hesitate anymore. Tell us your needs to custom an affordable 22 gauge wire from us.
