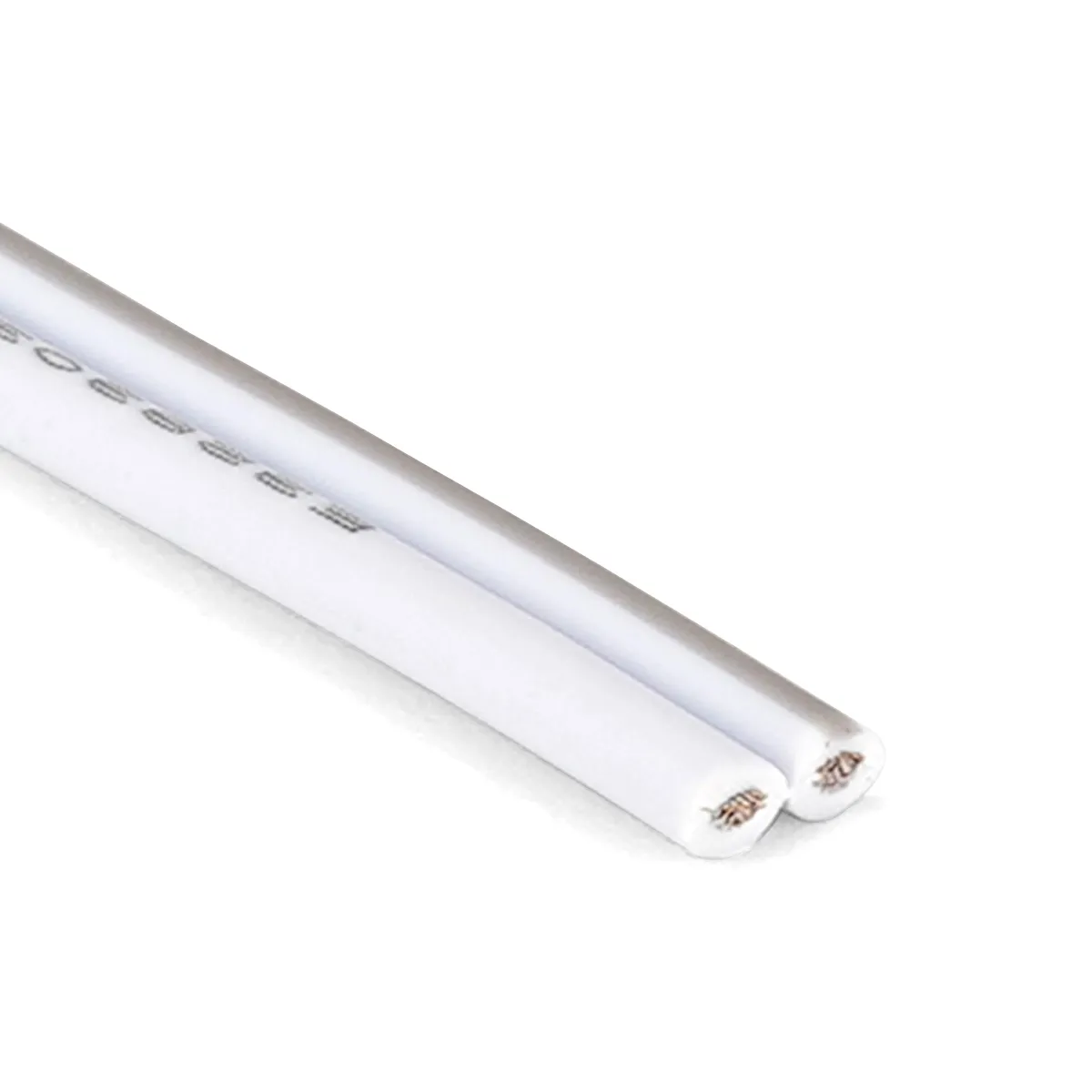

White Gray Color 22 Gauge Electrical Wire For LED Strip Lights
20 gauge electrical wire

20 Gauge Electrical Wire Two Conductor with White/Gray Color

This wire made with PVC jacket and copper is applicated to electronics, toy car batteries, lighting, etc. We also support customized with small MOQs at competitive prices, and all products are RoHS compliant.

Description

White/Gray 20 gauge electrical wire made with a high-quality PVC jacket and tinned copper wire is applicated to SM JST connector, electronic toy car batteries, and strip lights, which can be custom with small MOQs. Let us start making the best offer for the 20 gauge tinned copper wire.

20 gauge electrical wire

Benefits of 20 gauge electrical wire?

20 Gauge electrical wire is typically used to supply power in low-voltage, low-current applications such as LED lighting, SM JST connector, electronic toy car battery, solar panel, battery holder lead wire and strip lights, etc. They are ideal for a situation where conductors need to be routed quickly. This 20 AWG electrical wire is useful for quick installations and easy runs.

Benefits of 20 gauge electrical wire

What are PVC jacket colors available? In two conductor electrical wires, the available colors are red and black. But the wire gauge, length, and colors can be customized with small MOQs.

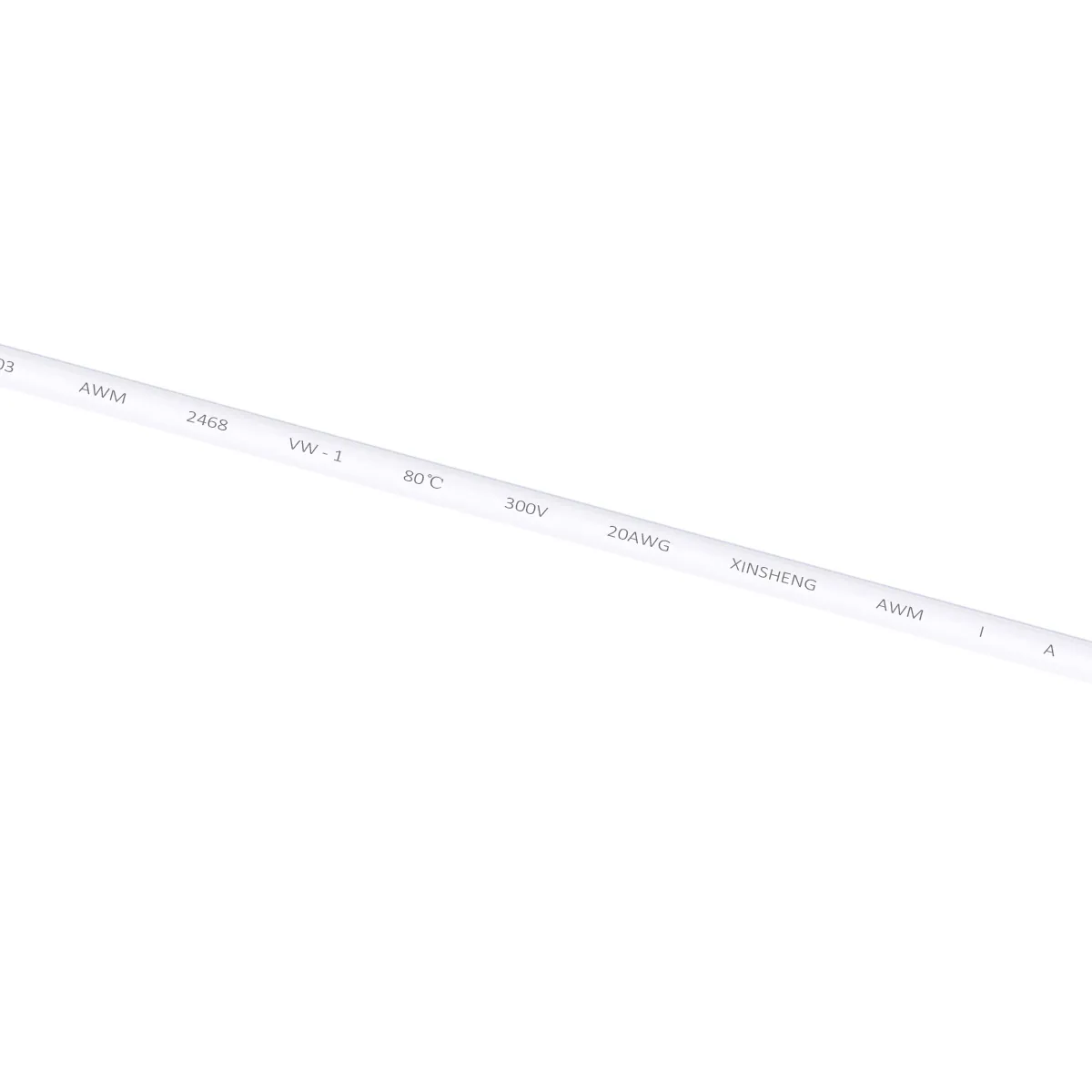

Specifications of 20 Gauge Electrical Wire 2 Conductor

Specifications of 20 Gauge Electrical Wire 2 Conductor

Conductor Quantity: 2
Wire Color: white, gray
Conductor Size: 20AWG
Construction (No./mm): 21/0.14
Conductor Material: stranded tinned copper
Insulation Material: PVC
Available Wire Lengths: 100m/roll
Outside Diameter: 1.85mm
Operating Voltage: 300V max.
Temp. Rating: -20 ~ 60°C
Compliance: RoHS

Package Includes:

1 x 100m/roll 20 AWG electrical wire

Note:

  • Note: The cable length, color, and type can be customized; please freely contact us and ask for the price and minimum order quantity!

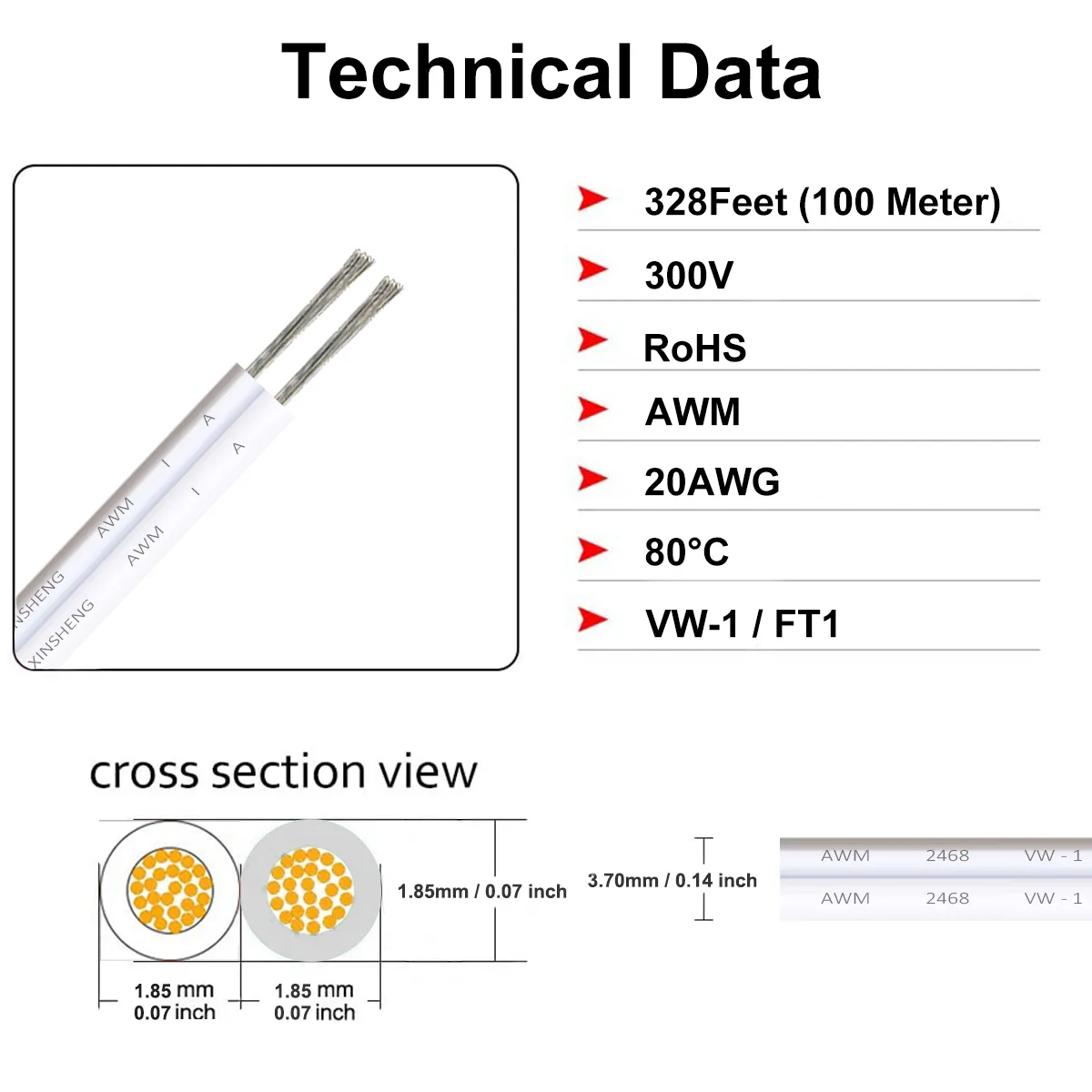

20 Gauge Wire Diameter

20 Gauge Wire Diameter

Applications of White/Gray 20 Gauge Solid Tinned Copper Wire

Suitable for LED lighting, SM JST connector, electronic, toy car battery, solar panel, battery holder lead wire and strip lights, etc.

Applications of White Gray 20 Gauge Solid Tinned Copper Wire

As a professional Electrical Wire Supplier and manufacturer from China, DelightFire can customize all types of PVC wire, such as 22 gauge electrical wire, 20 gauge electrical wire, and 18 gauge insulated electrical wire. You can get the best 20 AWG Electrical Wire price from the manufacturer directly without any wire distributor. Don’t hesitate anymore; tell us your needs to custom an affordable 20 gauge wire from DelightFire.
