20 gauge 2 conductor stranded wire made with high-quality tinned copper and insulated PVC is applicated to electronic equipment and can be custom with small MOQs. Let us start making the best offer for 22 gauge stranded wire.

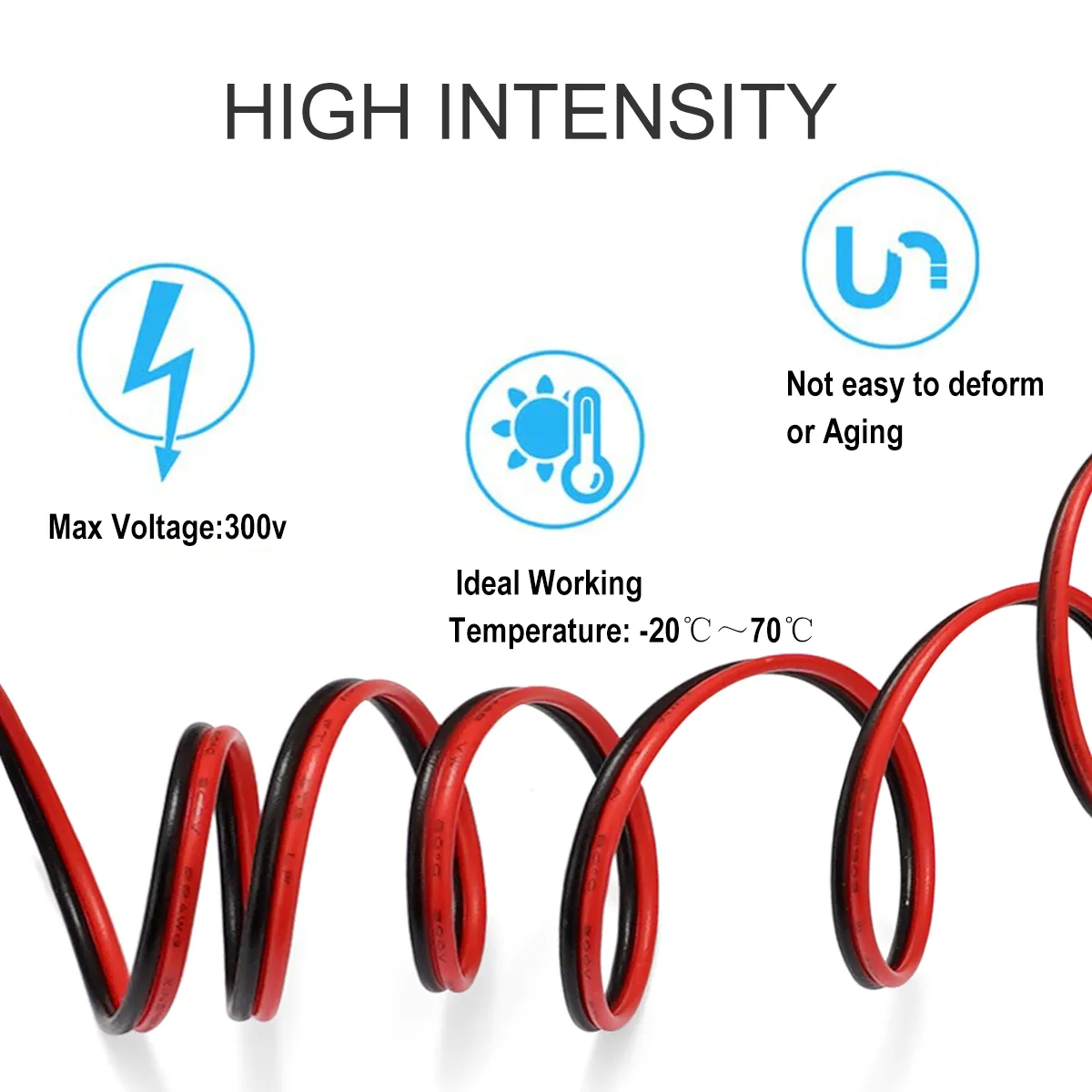

Benefits of 20 Gauge 2 Conductor Stranded Wire
20 gauge stranded wire, also called 20 gauge 2 conductors stranded wire, is perfect for lighting projects that require multiple rolls of LED strips. This 20 AWG 2 conductor stranded wire is typically used to supply power in low-voltage, low-current applications such as control panels, led strips, lamp bulbs, led drivers, toy car batteries, solar panels, electronic equipment, etc. They are ideal for a situation where conductors need to be routed quickly. This 20 AWG stranded wire is useful for quick installations and easy runs.
What are electrical wire colors available? In 2 conductor led wire, the available colors are red and black. But the led wire gauge, length, and colors can be customized with small MOQs
Specifications of 20 Gauge Stranded Wire
| Conductor Quantity: | 2 |
| Wire Color: | red, black |
| Conductor Size: | 20AWG |
| Construction (No./mm): | 21/0.14 |
| Conductor Material: | stranded tinned copper |
| Insulation Material: | PVC |
| Available Wire Lengths: | 100m/roll |
| Outside Diameter: | 1.75mm |
| Operating Voltage: | 300V max. |
| Temp. Rating: | -20 ~ 60°C |
| Compliance: | RoHS |
Package Includes:
1 x 100m/roll 20 gauge electrical wire
Note:
-
Note: The cable length, color, and type can be customized; please freely contact us and ask for the price and minimum order quantity!

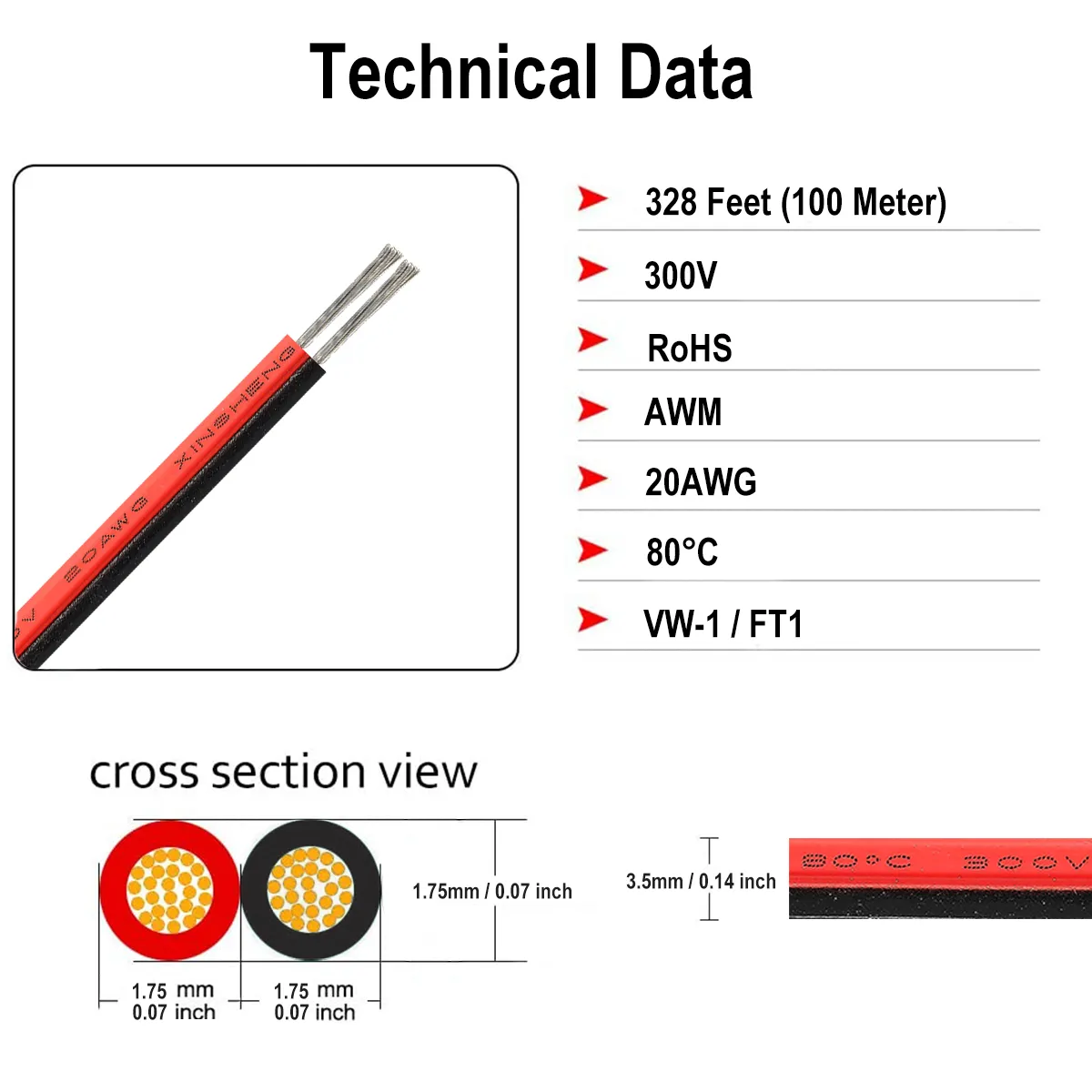

20 Gauge Stranded Wire Diameter:
What is 20 Gauge Wire Used for:
20 gauge wire is used for control panels, led strips, lamp bulbs, led drivers, toy car batteries, solar panels, electronic equipment, etc.
As a professional electrical wire manufacturer from China, DelightFire can customize types of electric wire, such as 22 AWG 2 conductor stranded wire, 20 AWG 2 conductor stranded wire, and 18 AWG 2 conductor stranded wire. You can get the best wholesale electrical cable from the manufacturer directly without any gauge wire distributor. Don’t hesitate anymore; tell us your needs to custom an affordable stranded wire from DelightFire.
