What is 12 gauge silicone wire

12 Gauge Silicone Wire Spool Red and Black Flexible 12 AWG Stranded Copper Wire

$113.00

This flexible silicone wire made with high-quality silicone rubber, and copper is applicated to model planes, household appliances, motors, etc. We also support customized with small MOQs at competitive prices, and all products are RoHS compliant.

Description

Red/black 12 gauge silicone wire made with high temperature resistant silicone rubber, and flexible stranded copper wire is widely used for model planes, model cars, model ships, lamps, household appliances, electric heating appliances, meters, and instruments, motors, and digital fields. This flexible silicone copper wire also can be customized with small MOQs as customers request for their projects. Let us start making the best offer for the 12 AWG stranded copper wire.

12 Gauge Silicone Wire Spool Red and Black Flexible 12 AWG Stranded Copper Wire

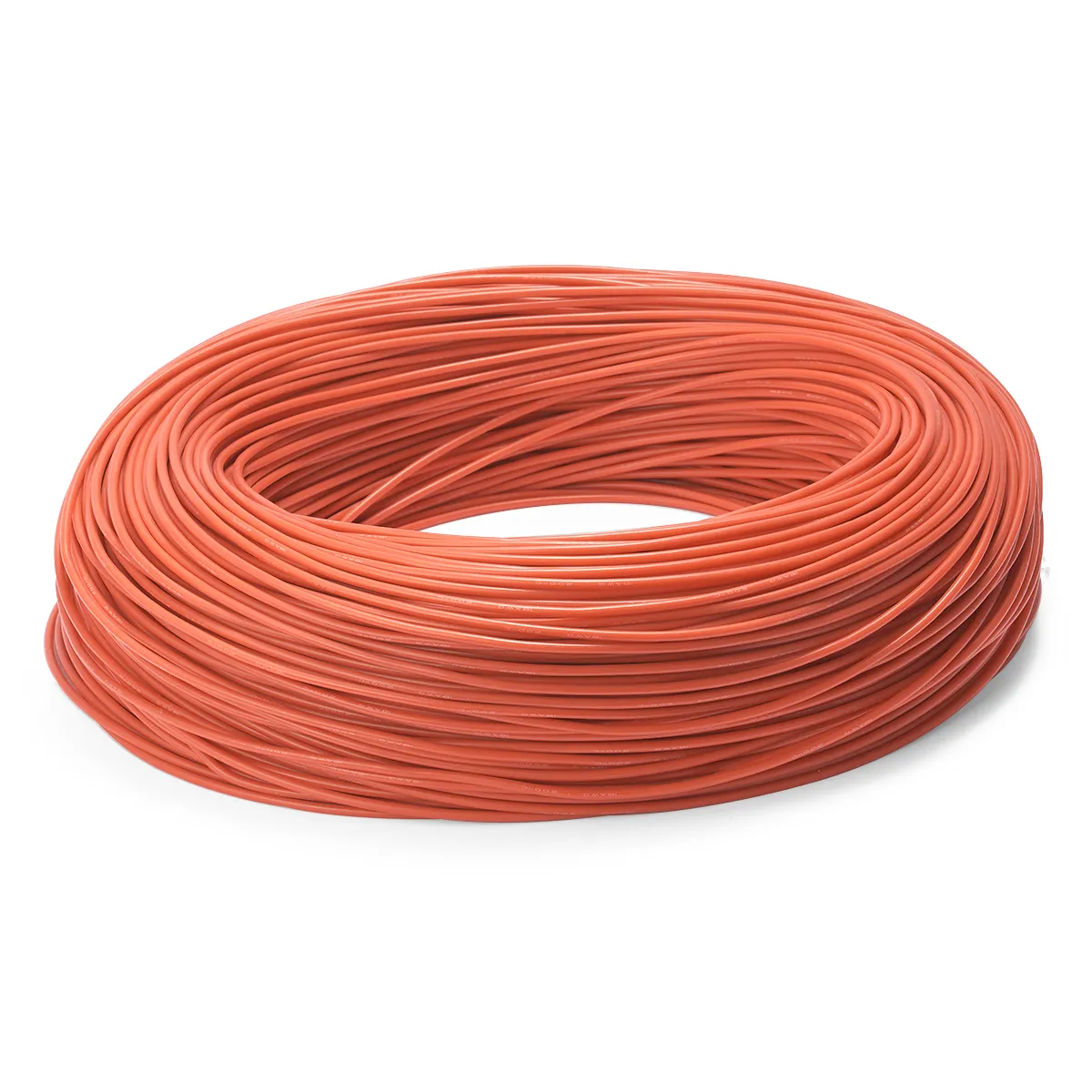

What is 12 gauge silicone wire?

Silicone wire, an industrial name AGR silicone rubber wire, is an electrical wire processed with silicone material. The suitable temperature range is -60°-200°, voltage 300/500V, the conductor material is tinned copper wire, the insulator is silicone rubber, and the braid layer is glass fiber + silicone resin.

12 Gauge Silicone Wire

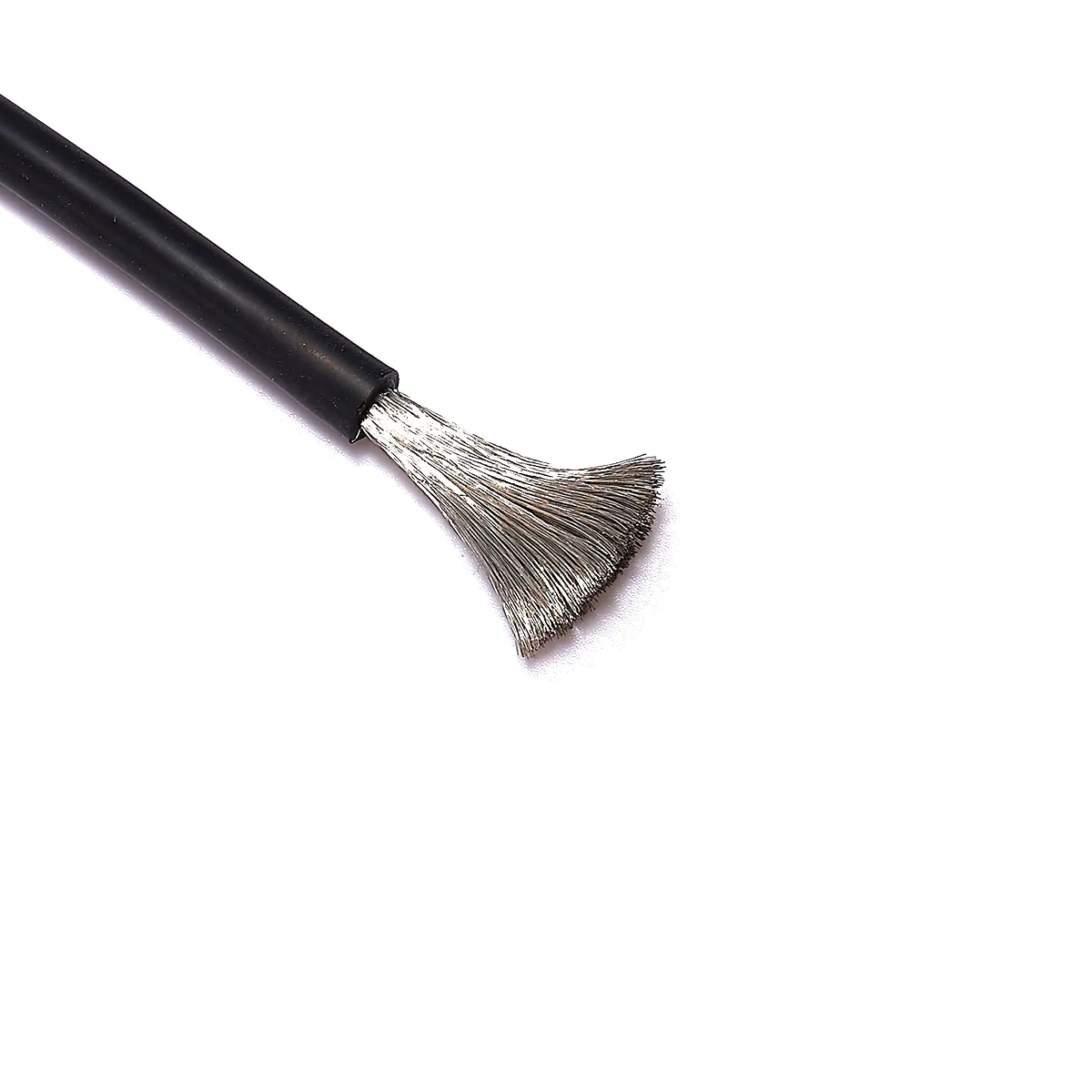

What are the benefits of 12 gauge flexible silicone copper wire?

12 gauge silicone wire has excellent high temperature and low temperature resistance, excellent electrical insulation performance, excellent chemical stability, high voltage resistance, aging resistance, and long service life. And soft for easy installation. The red black silicone wire has good acid, alkali, and anti-fungal properties and can resist hot and humid environments and various grease. In contrast, the cable has good softness performance, is waterproof, and has pressure resistance.

What are the benefits of 12 gauge flexible silicone copper wire

Specifications of 12 AWG silicone wire

Conductor Quantity: 1
Wire Color: red / black optional
Conductor Size: 12AWG
Construction (No./mm): 680/0.008
Conductor Material: stranded tinned copper
Insulation Material: silicone rubber
Available Wire Lengths: 100m/roll
Outside Diameter: 4.5mm
Inside Diameter: 2.41mm
Operating Voltage: 600V max.
Temp. Rating: -60 ~ 200°C
Compliance: RoHS

Package Includes:

1 x 100m/roll 12 AWG electrical wire

Note:

  • Note: The wire length, color, and type can be custom; please contact us to ask for the price and minimum order quantity!

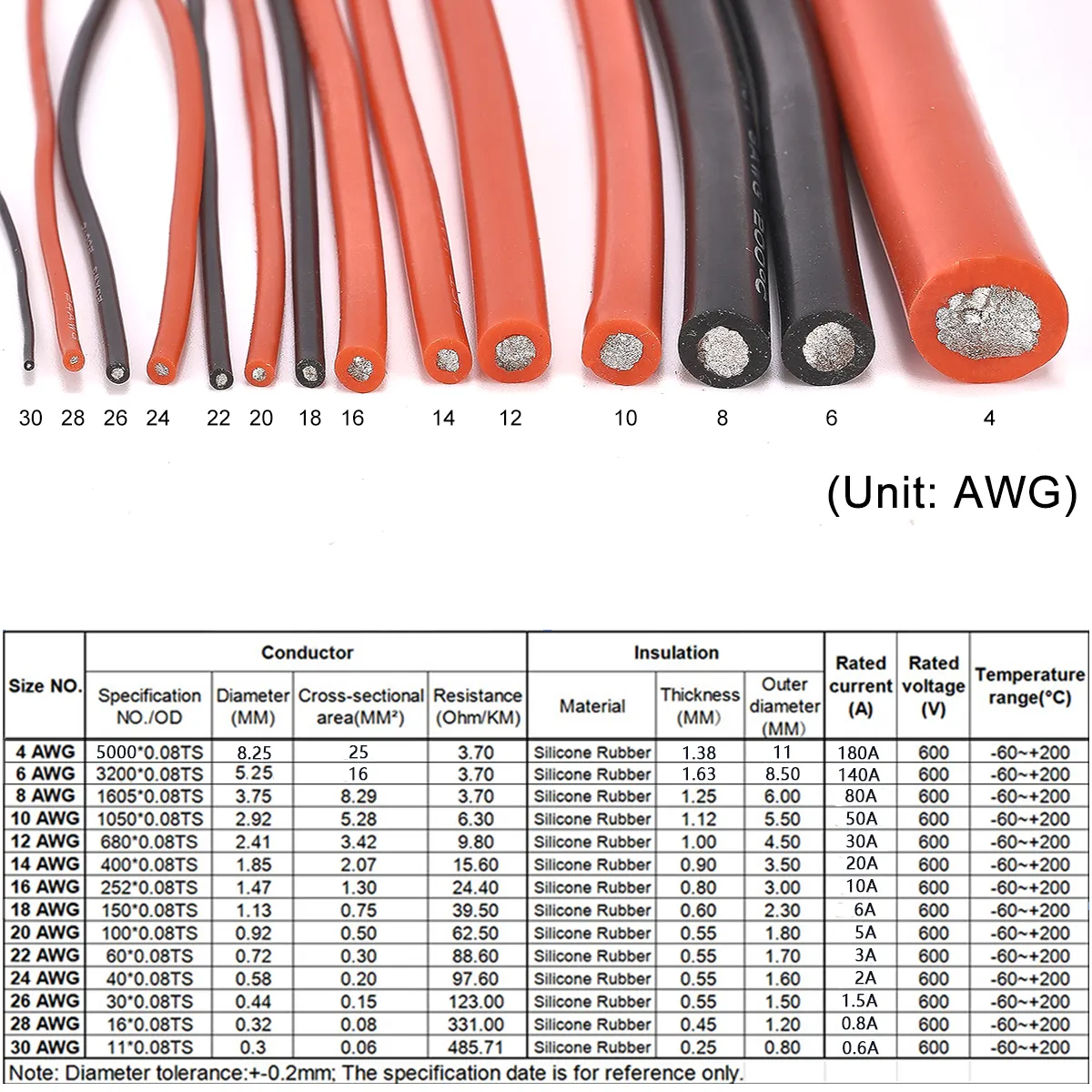

What are 12 gauge silicone wire dimensions?

Size NO. Conductor Insulation Rated Current(A) Rated Voltage(V) Temperature range(℃)
Specification NO./OD Diameter (mm) Cross-sectional area (mm²) Resistance (Ohm/KM) Material Thickness (mm) O.D. (mm)
30AWG 11/0.008TS 0.3 0.06 485.71 silicone rubber 0.25 0.8 0.6A 3KV -60℃~200℃
28AWG 16/0.008TS 0.32 0.08 331 0.45 1.2 0.8A
26AWG 30/0.008TS 0.44 0.15 123 0.55 1.5 1.5A
24AWG 40/0.009TS 0.58 0.2 97.6 0.55 1.6 2A
22AWG 60/0.008TS 0.72 0.3 88.6 0.55 1.7 3A
20AWG 100/0.008TS 0.92 0.5 62.5 0.55 1.8 5A
18AWG 150/0.010TS 1.13 0.75 39.5 0.6 2.3 8A
16AWG 252/0.008TS 1.47 1.3 24.4 0.8 3 10A
14AWG 400/0.008TS 1.85 2.07 15.6 0.9 3.5 20A
12AWG 680/0.008TS 2.41 3.42 9.8 1 4.5 30A
10AWG 1050/0.011TS 2.92 5.28 6.3 1.12 5.5 50A
8AWG 1605/0.008TS 3.75 8.29 3.7 1.25 6 80A
6AWG 3200/0.012TS 5.25 16 3.7 1.38 8.5 140A
4AWG 5000/0.008TS 8.25 25 3.7 1.63 11 180A

What are 12 gauge silicone wire dimensions

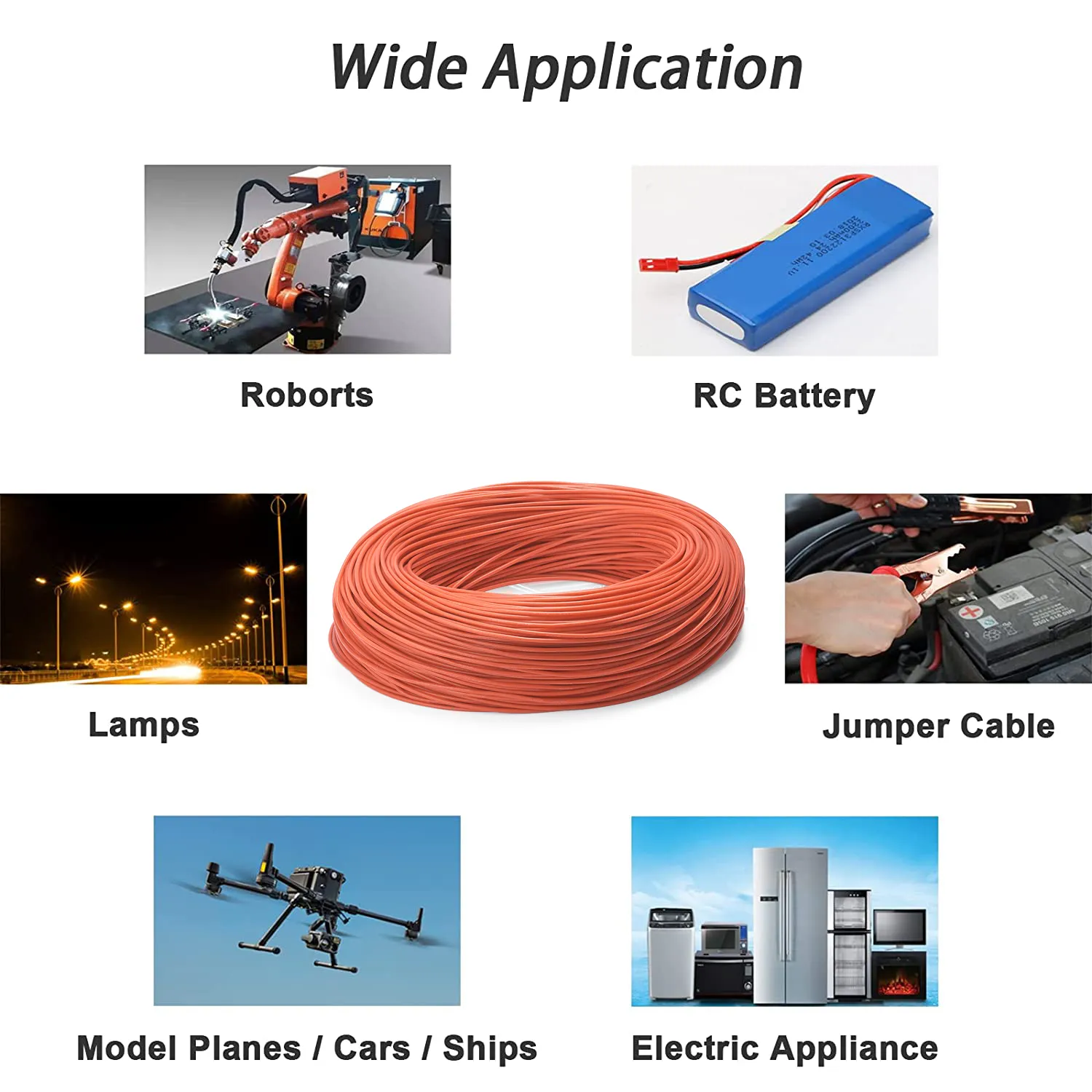

What is a 12 gauge silicone wire used for?

12 gauge silicone wire is suitable for cable long-term allowable working temperature of +180 ° C below the acceptable ambient temperature range of not less than -60 ° C, used in power generation, metallurgy, chemical industry, and other high-temperature environments mobile electrical equipment with electrical connections between services. Such as household appliances, microwave ovens, printers, copiers, and other high-temperature places. Silicone wire is generally laid in the indoor, mobile requirements for soft, shielding, and other occasions. The bending radius is greater than 6 times the outer diameter of the cable, laid at an ambient temperature of not less than 0 ℃.

What is a 12 gauge silicone wire used for

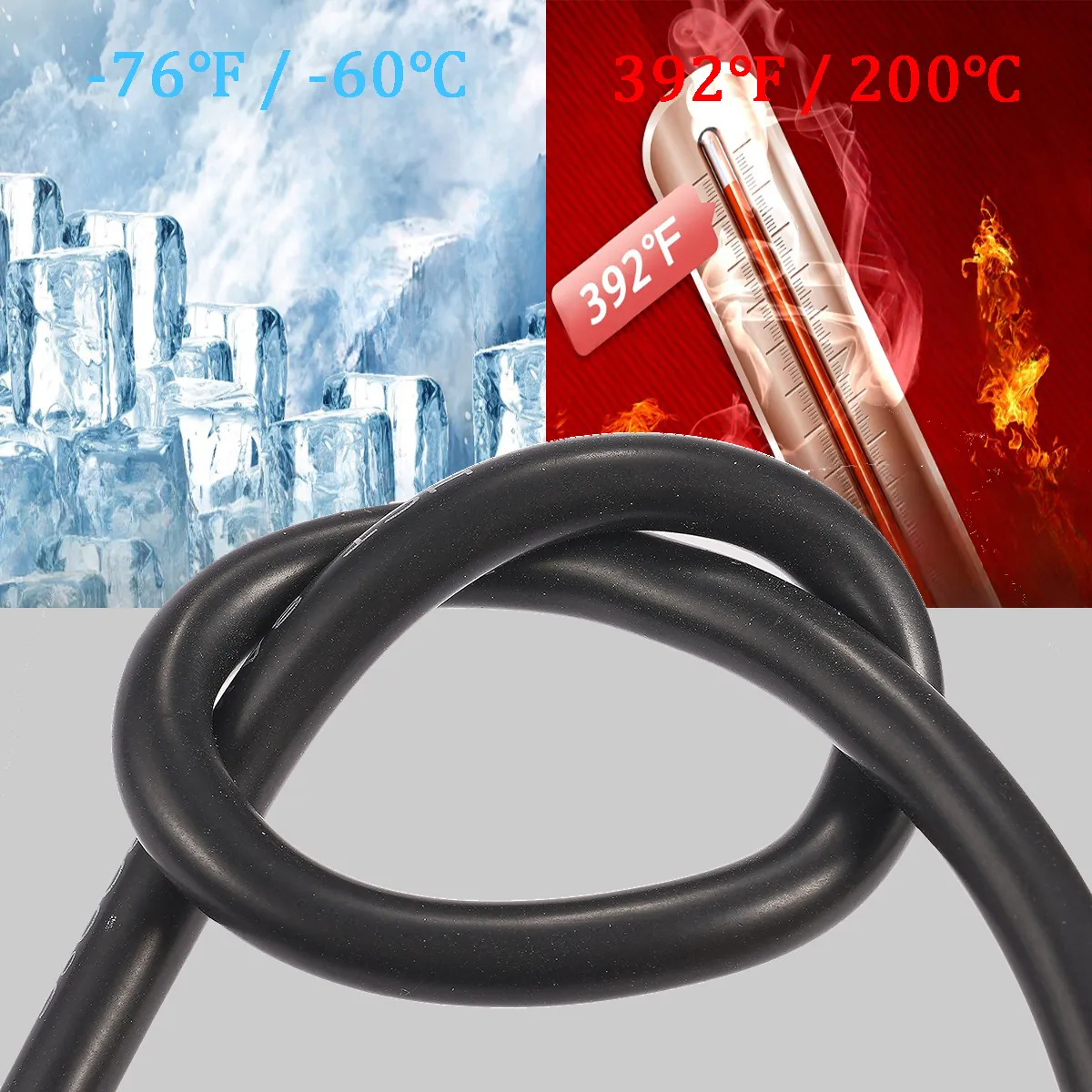

What are the silicone wire advantage and disadvantages?

Silicone wire advantages: excellent high temperature and low temperature resistance, excellent electrical insulation properties, high voltage resistance, aging resistance, and long service life. And soft for easy installation. This high temperatures resistance silicone wire has good softness performance and has the advantages of waterproof and pressure resistance.

What are the silicone wire advantage and disadvantages

Silicone wire disadvantages: silicone material itself is not wear-resistant, not corrosion-resistant, not oil-resistant; insulation material itself is low strength, the use of sharp or sharp metal in the environment, insulation is very easy to scratch or puncture, so the use of more recommended fixed laying.

Therefore, silicone wire uses silicone materials processed from the electrical wire, with good insulation properties, high voltage, aging resistance, and long service life. It is soft and easy to install. This product has good softness performance, waterproof, pressure resistance, and other advantages, and buyers can choose properly according to their needs.

material compare

Where to buy 12 gauge silicone wire?

As a professional 12 gauge silicone wire wholesale supplier and manufacturer from China, DelightFire can customize all types of high temperatures of silicone copper wire, such as 30 gauge silicone copper wire and 28 gauge silicone copper wire, 10 AWG silicone wire, and 4 AWG flexible silicone wire, etc. You can get the best silicone wire wholesale price from the manufacturer directly without any wire distributor.

copper compare

From 2012 to now, we have served more than 10000+ customers who custom wire and cable as needed. Don’t hesitate anymore, tell us your needs to custom an affordable electrical wire from us.
