18 Gauge Insulated Tinned Copper Wire Red/Black Color

Este fio feito com revestimento de PVC e cobre é aplicado em eletrônica, baterias de carro de brinquedo, iluminação, etc. Também oferecemos suporte personalizado com pequenas quantidades a preços competitivos, e todos os produtos são compatíveis com RoHS.

SKU electrical-wire-wholesale-18-AWG-copper-wire-lsccw0119 Categorias ,

Vermelho preto 18 gauge insulated tinned copper wire made with high quality PVC jacket and copper wire is applicated to SM JST connector, eletrônico, bateria de carro de brinquedo, fio condutor do suporte da bateria, painel solar, luzes de tira led e iluminação de lâmpadas de bulbo, pode ser personalizado com pequenos MOQs. Vamos começar a fazer a melhor oferta para o 18 Gauge Insulated Tinned Copper Wire.

18 gauge insulated

What is 18AWG wire?

The number in front of AWG (por exemplo., 24AWG, 26AWG) indicates the number of holes the wire has to pass through before forming its final diameter; the larger the number, the more holes the wire has to pass through, and the smaller the diameter of the wire. 18AWG wire is a guide to the number of holes the wire has to pass through before forming its final diameter, which is 18.

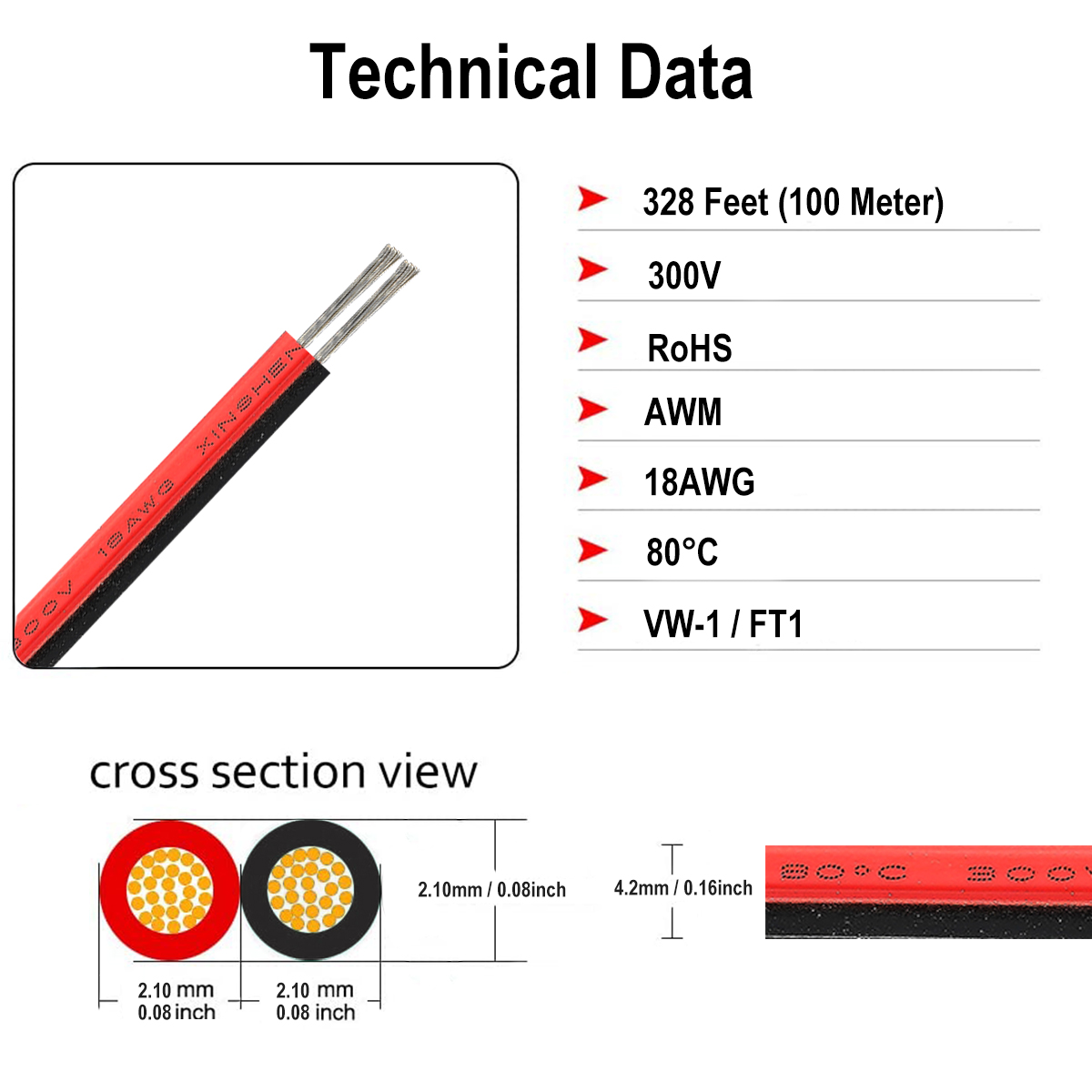

Especificações de 18 calibre fio elétrico

Quantidade de condutores: 2
Cor do fio: vermelho, Preto
Tamanho do condutor: 18AWG
Construção (Nº/mm): 34/0.14
Material condutor: tinned copper
Material isolante: PVC
Comprimentos de fio disponíveis: 100m/rolo
Diâmetro externo: 2.1milímetros
Tensão operacional: 300V max.
Temp. Avaliação: -20 ~ 60°C
Observância: RoHS

O pacote inclui:

1 x 100m/rolo 18 calibre fio elétrico

Observação:

  • Observação: O comprimento do cabo, cor, e tipo pode ser personalizado; por favor contacte-nos livremente e peça o preço e a quantidade mínima de encomenda!

18 Gauge Stranded Wire Diâmetro:

O que é uma 18 fio elétrico de calibre usado para?

The thickness of a wire is expressed in its gauge or by reference to the American Wire Gauge (AWG). 12AWG wire is thicker than 18AWG wire. Wires 12, 14, 16, e 18 are the most common audio speaker wires. Stranded wire is more flexible and more accessible to wire than solid core wire and can withstand vibration and bending; therefore, it is more commonly used for audio speaker wiring.

The manufacturing process for stranded wire is much more complex, so it will cost more to manufacture. The thickness of the wire you choose is vital as it affects the overall resistance of the speaker circuit. As a result, it involves the power transfer between the amplifier and the speakers. Resistance is a measure of current resistance. 16AWG has less power loss and is, therefore, more suitable for speaker or extension cables unless the load is small and the cable needs to be hidden.

Delightfire has maintained its wire and cable niche for over a decade, insisting on excellent quality based on the market and using it to provide customers with high-quality wire and cable, including 18AWG wire. If you are busy with a wire and cable project, please contact us or submit a quote request.

Peso 2.0 kg
Dimensões 1 × 1 × 1 cm
Marca

DelightFire
